1MS648F1T2A Smart Android Board
1MS648F1T2A is an Intelligent, smart Android network driver LED TV motherboard with a Ultra High Definition 3840×2160 resolution. This is dedicated to 50/60 Hz screens. It is a combo board. It features full connectivity for the input interface. It has multiple input connectivity ports like triple HDMI, Mini AV, Coaxial, headphones, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. It has a digital and analog TV tuner built into the main board, which can receive analogand digital (DVB-T2) television signals. This board has an inbuilt WiFi module and LAN interface. The 1MS648F1T2A Board Firmware files are given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Board Model: 1MS 648F1T2A-TTM648A4
Chipset: MS648
Supported Resolution: 3840×2160 UHD
Screen Format: 16:9
Operating System: Android 6.0
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1 GB DDR3
ROM: 8 GB EMMC

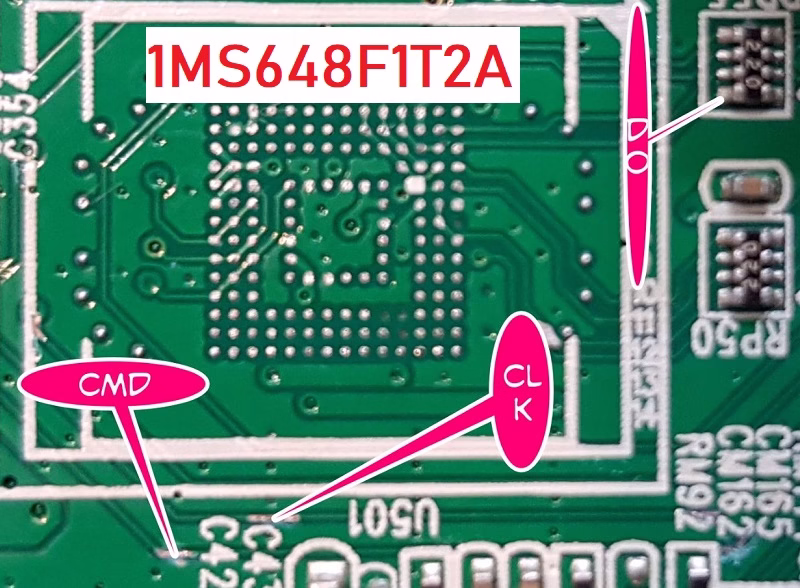

EMMC: KLM8G1GETF
Backlight: 38-77V 570mA
USB Input: 02
HDMI Input: 03
Scart: No
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: No
AV Input: Yes (Mini)
Sound Output: 20W DTS-HD
RF TUNER: DVB-T2
Video System: PAL/SECAM/NTSC
Firmware: Type: USB Bootable
Firmware Name: MstarUpgrade.bin
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
1MS648F1T2A Firmware for free download:
