*35023781 Smart Android Board
*35023781 is an Intelligent smart 4K network driver LED TV board with an Integrated digital terrestrial receiver supporting resolution of 3840×2160. *350 23781 is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV with Android Platform and great features to entertain in ultra HD Widescreen with better work capabilities. *350 23781 has all the features and multiple input interface connectivity. It features multiple ports, including HDMI, AV, Headphones, VGA interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity. Its USB interface can be used for software upgrades and multimedia file playback.
*35023781 is a digital and analog TV board; it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2) signals. *35023781 Firmware file is given below for the Technician’s support. It is built with an Mstar chipset, which is why its built quality is very good. Its display picture video quality is excellent; the user may experience real Ultra HD pixels. This board is compatible with 4K Ultra HD resolution screen panels. A WiFi Android chipset is also mounted on this board. The sound quality of this board is also very good. This board is Non-Combo, so the power main circuit module and backlight driver controller will be required separately.
Technical Features & Specifications:
Brand/Make: LCD/LED UHD Smart Driver Board
Model: *350-23781 REV-00
Chipset: MSD6586PYE-8-00FE
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android
CPU: ARM Cortex-A53
GPU: Mali T720 MP2
RAM: 1GB DDR3
ROM: 8 Gb

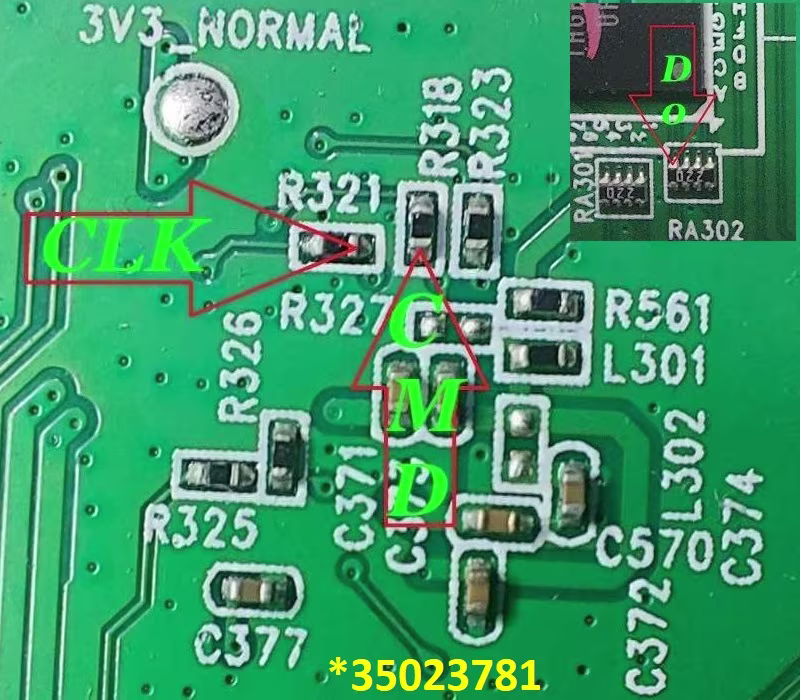

EMMC: THGBMFG6C1LBAIL
Sound Output: 10Wx2 DOLBY
RF TUNER: DIGITAL TUNER DVB-T/T2
Video System: PAL/SECAM/NTSC
Power Input: 100-240 V AC
Power Consumption: 150W
Standby Power: 0.5W
Firmware: MstarUpgrade.bin
Firmware Type: EMMC Backup
Product: BRANDT
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading, installing, or updating software, firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
35023781 Firmware for free download:
