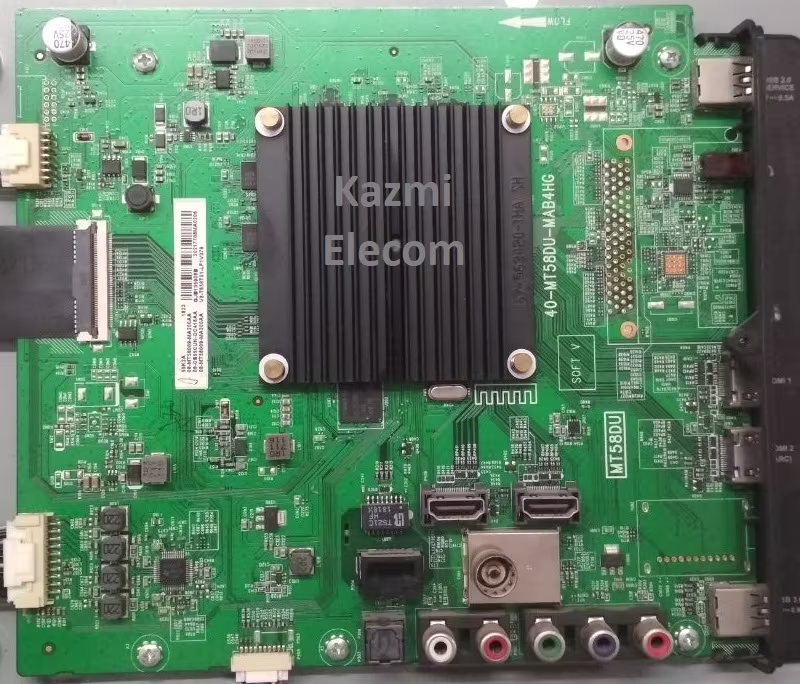

40-MT58DU-MAB4HG UHD Smart Board
40-MT58DU-MAB4HG is a smart LED TV motherboard. Its supported resolution is 3840×2160 Ultra HD 2160 Pixels. It is not a Combo three-in-one driver controller board. The main power supply input module is not combined with an LED backlight driver inverter module, and cable TV tuners. The sound card is also built on a single PCB. Audio output with a stereo dual speaker is 16 watts. Its main storage memory (ROM) is 16GB EMMC and Flash. It has a built-in WiFi system. It has dual TV tuners for analog signal reception and digital signal reception.
40-MT58DU-MAB4HG board has multiple user connectivity interfaces, such as a CI+ interface and a dual HDMI input interface for connecting Digital devices such as Play Stations, Digital Cameras, Set-Top boxes, Gaming Consoles, etc. It has mini composite ports for connecting analog devices. It has dual USB input ports to connect USB devices, play multimedia files, and upgrade software. For wired internet connectivity, it has an Ethernet port (LAN) to get faster and smoother browsing.
General Information and Specifications:
Model Name: 40-MT58DU-MAB4HG
Chassis: MT58DU
Main Chipset: MediaTek MT5658MGEJ
Software Version: V8-MT56
Resolution: 3840×2160
Processor: MediaTek
RAM: 2 GB
ROM: 16 GB EMMC

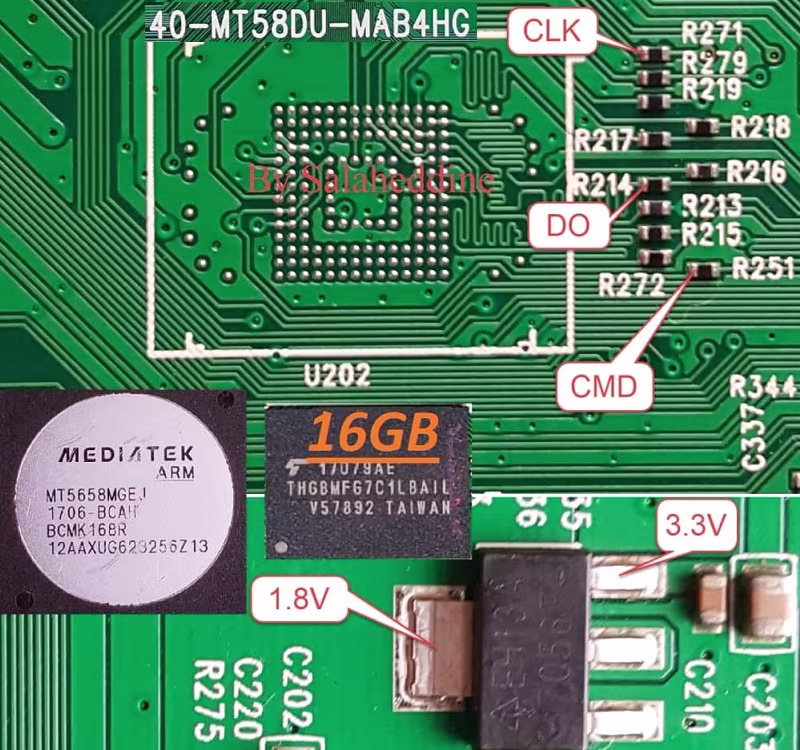

EMMC: Toshiba THGBMG5D1LBAIL
Aspect Ratio: 16:09
Audio Power Output: 16w (8×2)
System: PAL//SECAM/NTSC
Dual Tuner: Yes
Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S2
HDMI: 4
USB Ports: 2
VGA: No
SPDIF: No
Scart: No
CI+=Yes
LAN: Yes (RJ45)
Firmware: Update.pkg
Firmware Type: USB Bootable
Note: The following firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
40-MT58DU-MAB4HG Firmware files for free download:
