40-R51MG8-MAB2HG Firmware Free Download

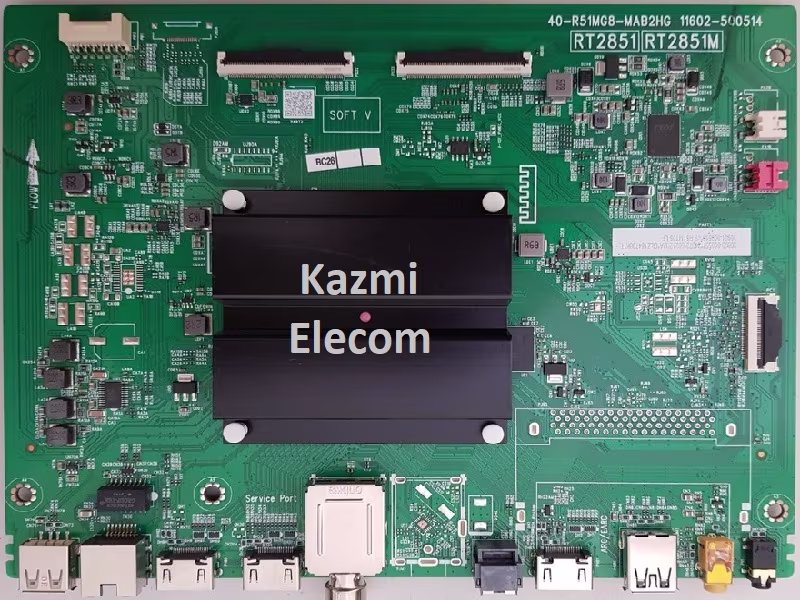

40-R51MG8-MAB2HG UHD Smart Board

40-R51MG8-MAB2HG is a UHD smart Android LED TV motherboard. This motherboard supports a screen resolution of 4K 2160 Pixels Ultra HD 3840×2160. This board is a combo LED TV board. The main input power supply circuit module, the Cable TV tuner, and the LED backlight driver module are built into a single piece of printed circuit board (PCB). The ROM storage capacity of this motherboard is 16 GB, which is sufficient for users to install and play new applications of their choice and enjoy.

Download Here

40-R51MG8-MAB2HG LED TV smart Android mainboard has several input-output ports for user connectivity. It has triple HDMI input ports for connecting digital full-HD devices. It has an RJ45 Ethernet connection interface for wired internet connectivity to get faster and smoother internet results. It has a mini component input for analog device connectivity. It has a Digital audio optical out (SPDIF) and a cable TV tuner. It has a USB interface port for software upgrades and multimedia playback.

TPD.RT2851T.PC778 General Information:

Board Model: 40-R51MG8-MAB2HG

Main Chipset: RTD2851MGP

Chassis: RT2851 RT2851M

CPU: Quad-Core

GPU: Mali-450

Android Version: Android

Resolution: 3840×2160

Audio Power: 2x10W (20 watts 8 ohm)

Backlight Volt: 90-102V

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 3

CI: No

Component: Yes

RJ45: Yes

Tuner: ATV and DTV (R842, RT710)

Wifi: Yes

Mira-Cast: Yes

Bluetooth: 5.0

Memory (RAM): 2GB DRAM

Storage (ROM): 16 GB EMMC Flash

EMMC: KLMAG1JETD-B041

Power Rating: 110V~240V 50Hz

Power Consumption: 105Watt

Firmware Name: Update.img

Firmware Type: USB Bootable and EMMC Backup Dump

Product User: iFFALCON, TCL

How to Write 40-R51MG8-MAB2HG EMMC Backup:

Download the given EMMC backup shared in this post below
Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
JTAG the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and lack knowledge of loading/installing, or updating software/firmware or dump files, or are facing issues during firmware installation, please visit and read this information first.
