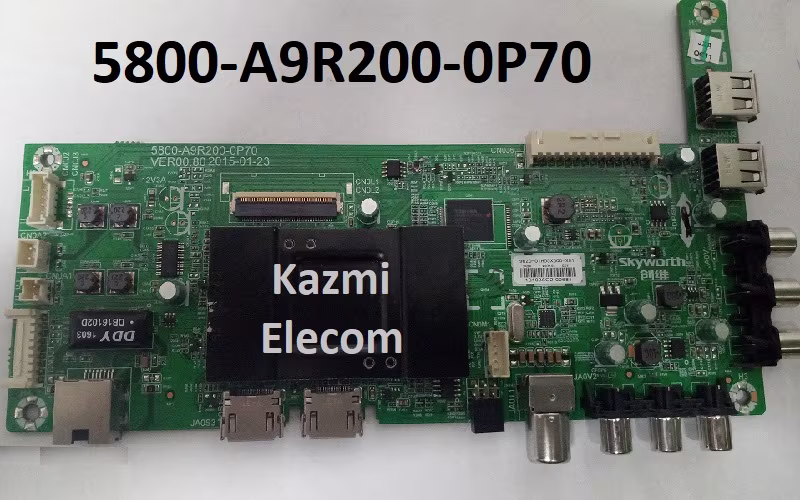

5800-A9R200-0P70 Smart Android Board
5800-A9R200-0P70 is an Intelligent, smart Android network driver LED TV motherboard with a Full High Definition 1920×1080 resolution. This board is specifically designed for 50/60 Hz screens. It is a non-combo board. It features full connectivity for the input interface. It has multiple input connectivity ports like dual HDMI, RCA AV, Coaxial, headphones, dual USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. This board features a digital and analog TV tuner integrated into the main board, allowing it to receive both analog and digital television signals. It has a special connectivity feature of screen mirroring. This board has an inbuilt WiFi module and LAN interface. The 5800-A9R200-0P70 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: 5800-A9R200-0P70
Chipset: RTD298
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 4.4
CPU: Dual Core
GPU: Mali-450
RAM: 512MB
ROM: 4 GB EMMC
Backlight: NA
USB Input: 02
HDMI Input: 02
Scart: No
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: No
AV Input: Yes
Sound Output: 20W DTS-HD
RF TUNER: ATV
Video System: PAL/SECAM/NTSC
Firmware: Type: EMMC Backup

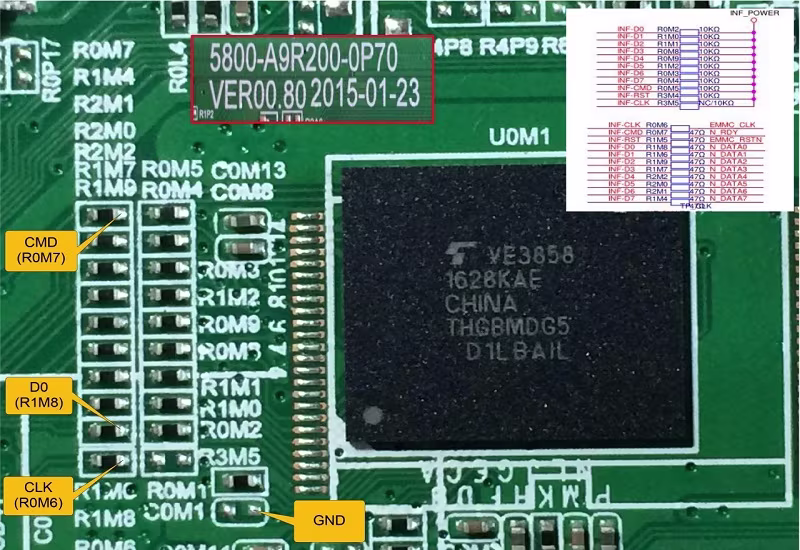

EMMC: THGBMBG5D1KBAIL
Firmware Name: NA
Product User: SKYWORTH
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
5800-A9R200-0P70 Firmware for free download:
