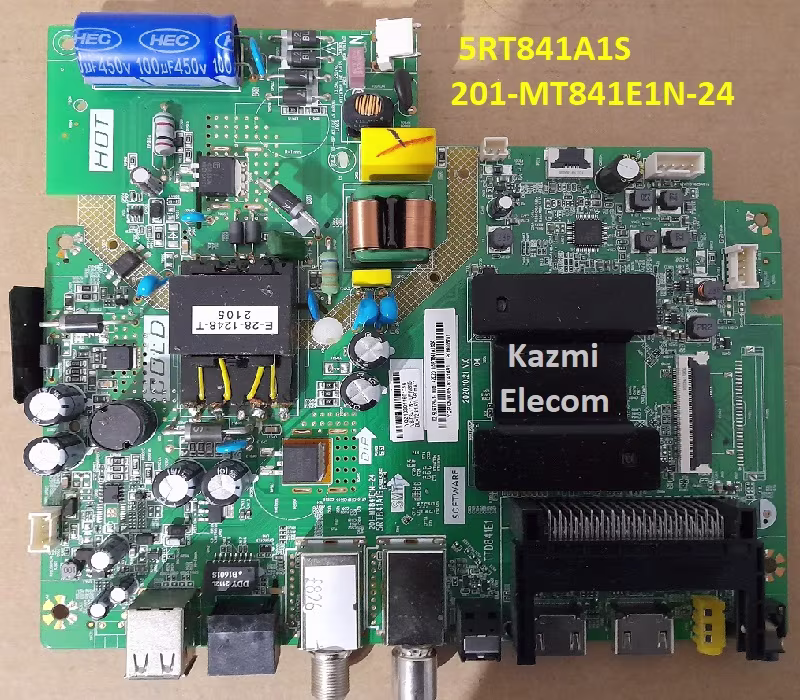

5RT841A1S 201-MT841E1N-24 Smart Board
3RT841B is a smart Android LCD/LED Driver Board. It can support maximum resolutions of up to 1920×1080 Full HD screen Panels. This Combo board is a Multi-Purpose LED FHD TV Driver Control Board. It has multiple input/output interface ports, such as WIFI, RJ45, USB 2.0, HDMI 2.0, SPDIF, AV, YPbPr, and Analog TV input, which also support Optical and earphone output.
The 3RT841B is based on the Android operating system and has a built-in 1.5GB RAM and 8 GB storage memory. Its firmware can be updated via the USB interface. Here are the different brands’ firmware files available for the Technician’s support.
General Features and Specifications:
Model No: 5RT841A1S 201-MT841E1N-24
CHIPSET: RTD2841
POWER To Panel: 12V
CPU: Quad-Core
RAM: 1.5 GB
ROM: 8GB EMMC Flash
Resolution Format: 1080
OS: Android 9.0
HDMI Input: 03
USB Input: 02
RCA Component: Yes
VGA: No
SPDIF: Yes
Backlight: 36-40.8V OR 72-81.6V 300mA OR 600mA
Network: Support Ethernet, WIFI, 3G
System update: Support USB/SD update
AC Input Requirement: 100 ~ 240V
Low power consumable mode: standby≤0.5W
Firmware Name: Install.img
Firmware Type: USB Bootable
Product Users: ARTEL, VISION, SHIVAKI, Others.
Note: The following software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware/software. If you are new and lack knowledge of loading, installing, or dumping files, read here first.
3RT841B firmware for free download:
