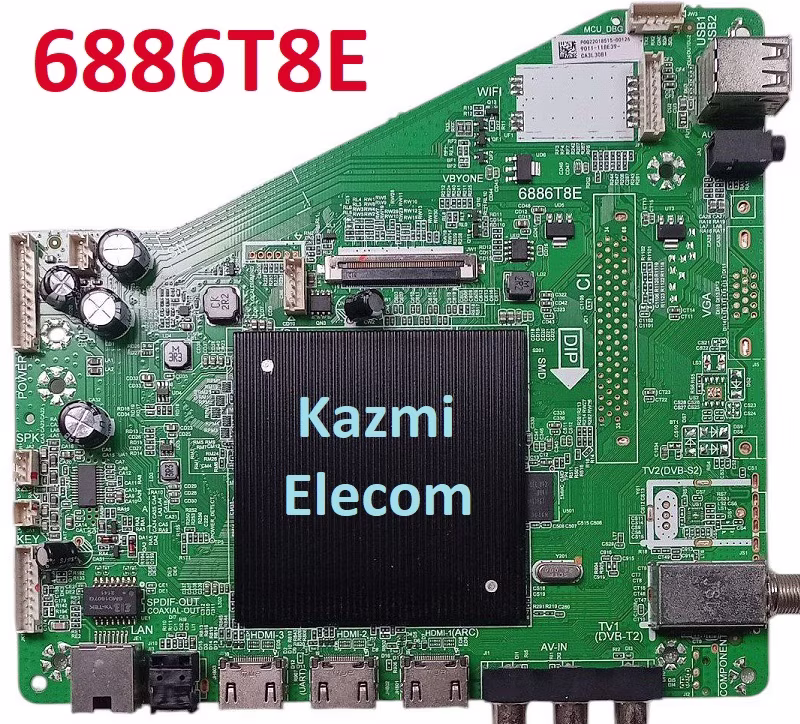

6886T8E UHD Smart Board
6886T8E is an Intelligent smart 4K network driver LED TV board with an Integrated digital terrestrial receiver that supports a resolution of 3840×2160. 6886-T8E is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. 6886 T8E has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. 6886T8E is a digital and analog TV board; it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2/C) signals. 6886.T8E Firmware file is given below for the Technician’s support. 6586T8E2 Main Board is used for Toshiba, Icesa, and Mecer UHD Smart LED TVs. 6886T8E is also used for other Brands’ 4K Ultra HD LED TVs.
General Features & Specifications:
Brand/Make: LCD/LED 4K Smart Driver Board
Model: 6886T8E 4704-6886T8-A2233G01
Chipset: 6886L
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 6.0
CPU: ARM Cortex-A9/1.2GHz/Dual-core
GPU: Mali T450MP2/Dual core
RAM: 1GB DDR3
ROM: 4Gb
Sound Output: 8Wx2
TUNER: Analog & Digital Tuner DVB-C/T/T2
Video System: PAL/SECAM/NTSC
Power Input: 220-240 V AC
Power Consumption: 130W
Standby Power: 0.5W
Firmware Name: 6886L_DVBT_4G.bin
Firmware Type: EMMC Backup Dump
Note: The following firmware is an EMMC backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
6886T8E Firmware files for free download:
