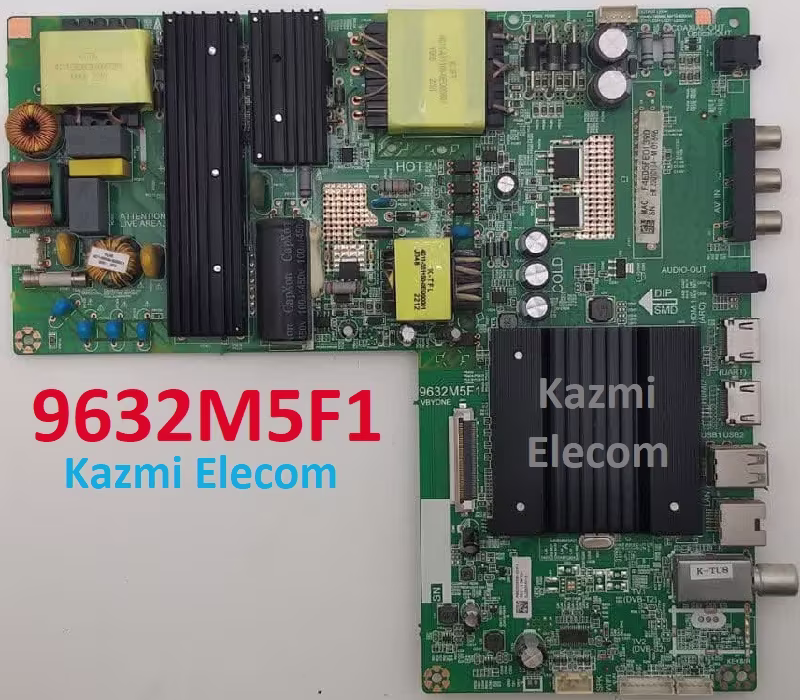

9632M5F1 Smart Android Board
9632M5F1 is a UHD smart Android LED TV motherboard. This motherboard supports 4K 2160 Pixels Ultra HD 3840×2160 screen resolution. This board is a combo LED TV board. The main input power supply circuit module, Cable TV tuner, and LED backlight driver module are built into a single piece of printed circuit board (PCB). The ROM storage capacity of this motherboard is 16 GB, which is sufficient for the user to install and play new applications of their own choice and enjoy.
9632M5F1 LED TV smart Android mainboard has several input-output ports for user connectivity. It has triple HDMI input ports for connecting digital full-HD devices. It has an RJ45 Ethernet connection interface for wired internet connectivity to get faster and smoother internet results. It has a mini component input for analog device connectivity. It has a Digital audio optical out (SPDIF) and a cable TV tuner. It has a USB interface port for software upgrades and multimedia playback.
TP.MT9632.PB721 General Information:
Board Model: 9632M5F1
Main Chipset: MT9632
CPU: Quad-Core
GPU: Mali-450
Android Version: Android 11
Resolution: 3840×2160
Audio Power: 2x10W (20 watt 8 ohm)
Backlight Volt: 90-102V
Backlight Current: NA
Backlight Power: NA
USB Ports: 2
HDMI Ports: 2
CI: No
Component: Yes
RJ45: Yes
Tuner: ATV and DTV (R842, RT710)
Wifi: Yes
Mira-Cast: Yes
Bluetooth: 5.0
Memory (RAM): 1.5GB DRAM
Storage (ROM): 8 GB EMMC Flash
Power Rating: 110V~240V 50Hz
Power Consumption: 105Watt
Firmware Name: a9632R_DVBT_8G.bin
Firmware Type: EMMC Backup Dump
Product User: HORION
TP.MT9632.PB721 Technical Specifications:
- Resolution 4K UHD 2160P 3840×2160
- HD support HD
- LED backlight DLEDD
- Response time 8 ms
- Display scale 16:09
- Stereo sound there is / there is
- Matrix-type LED
- Refresh rate 60 Hz
- Processor frame 64-bit ARM Cortex-A53 Quad-Core
- GPU Mali-450 MP3
- OS version Android 11
- RAM (DRAM) 1.5GB
- ROM (Flash) 8GB
- WIFI 2.4GHz / 5GHz
- HDMI 2.0 (HDCP 2.2) 2
- HDMI CEC (T-link) Full
- Caption (Subtitle) Yes
- Game mode Yes
- Bluetooth SBC / 4.2
- Sleep Timer Yes
- HDMI quick switch Yes
- DLNA 1.5 Yes
- USB HID support Yes
- USB channel list clone Yes
- USB 2.0 2
- Teletext there is
- ATV PAL/NTSC
- Sound power 10w+10w
- Acoustic system Buffer speakers
- DOLBY DIGITAL there is
- Supported formats MP3, WMA, MPEG4, MKV, JPEG
- Built-in Receiver
- Bluetooth 5.0
- Social Yes (YouTube, Netflix)
- Processor Quad Core
- Smart Apps: Netflix, YouTube
- SmartTV
Note: The following TP-MT9632-PB721 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
