CV9602-B55 Firmware Free Download

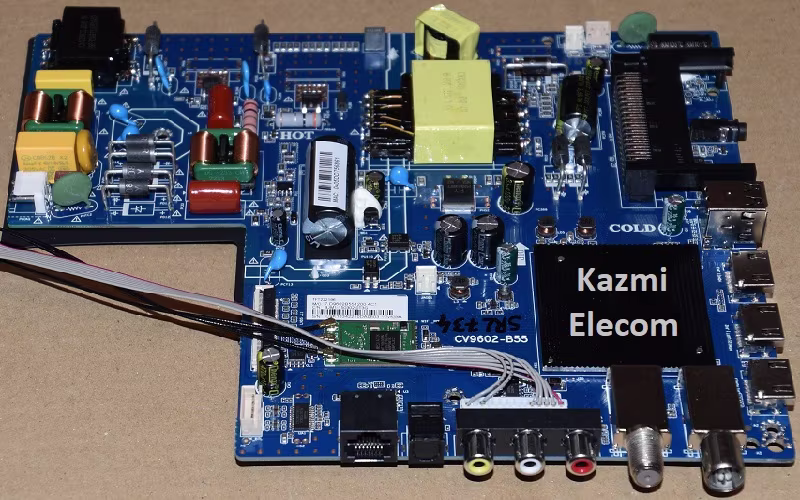

CV9602-B55 UHD Smart Board

CV9602-B55 is an analog and digital 4K UHD smart Android board with a resolution of 3840×2160, supporting the latest VIDAA Operating system. CV9602_B55 is a universal without a backlight driver circuit and a power supply module. CV9602.B55 can support many panel screens from 15.6 inches to 55 inches with the best picture quality.

Download Here

CV9602-B55 has multiple connectivity ports like AV, three HDMI, USB, and Digital Tuner input (DVB T/T2, C, S/S2). Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and built-in Apps. CV9602.B55 firmware files are given below for the technician’s support.

General Specifications & Features :

Brand/Make: LCD/LED 4K Smart Driver Board

Model: MT9602-B55

Main Chip: MT9602

Supported Resolution: 3480×2160

Screen Format: 16:9

Chipset: MT9602

Platform: M7332

Operating System: VIDAA

CPU: Cortex A53*4 64-bit

GPU: G52(2EE)MC1

RAM: 1.5Gb

ROM: 4Gb

EMMC: THGBMTG5D1LBAIL

Sound Output: 10Wx2

Transmission: DVB-C/DVB-T/T2/S2

Video System: PAL/SECAM

Backlight Voltage: 117V

Backlight Current: 520mA

Backlight Power: NA

AC Input: 110-220V

Firmware Name: MstarUpgrade.bin

Firmware Type: USB Upgradeable and EMMC Backup Dump

Service Menu Code:

Product: VORTEX, SCHNEIDER, NEI

How to Write CV9602-B55 EMMC Backup:

Download the given CV9602.B55 EMMC backup shared in this post above
Note the EMMC Pinouts in the given picture above
JTAG the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following CV9602.B55 firmware is a backup dump and USB upgrade file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
