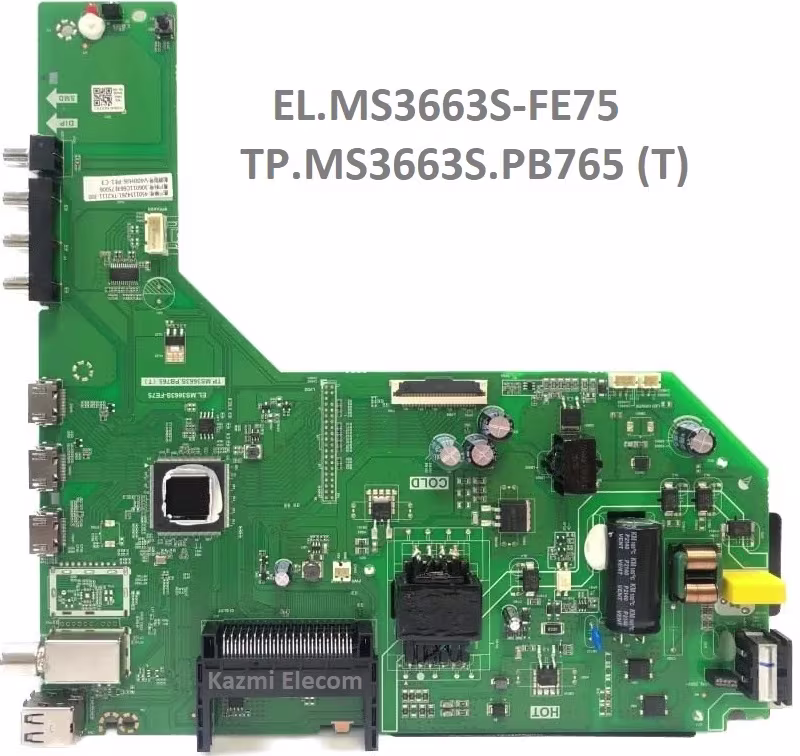

EL.MS3663S-FE75 LED TV Board
EL.MS3663S-FE75 is a universal LCD/LED Board that has Full HD resolution supported up to 1920×1080. TP_MS3463S_PB765 is a non-combo board, which means the main power supply, LED backlight driver board will be installed separately, while the ATV tuner section is built into this PCB. The firmware files are given below for the technician’s support.
EL.MS3663S-FE75 universal board has multiple connectivity input/output ports for the user’s convenience. It has dual HDMI input ports for connecting digital Full HD devices. It also features a USB input interface port for software upgrades and playing multimedia files. It has an RCA input for connecting analog devices.
General Specifications:
Brand/Mark: China Universal
Model: TP-MS3663S-PB765 (T) EL-MS3663S-FE75
Main Chip: MSD3663
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 65-75w
Backlight Current: mA
Resolution: up to 1920×1080
Flash size: 8 MB
AUDIO: TPA3110LD2
Tuner: XF-3SDT-H (R840)
Service Menu:
Source
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation, then visit and read here first.
EL.MS3663S-FE75 firmware for free download:
