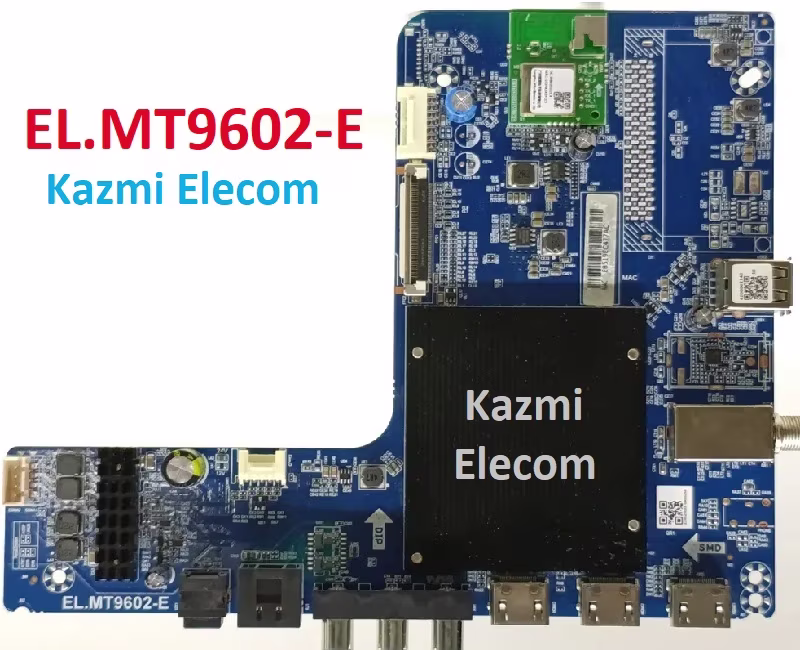

EL.MT9602-E UHD Smart Board

EL.MT9602-E is an analog and digital 4K UHD smart Android board with a resolution of 3840×2160, a supported smart Android board with the latest Android version of 11.0. EL-MT9602-E is a universal module without a backlight driver circuit and a power supply module. EL-MT9602-E can support many panel screens from 15.6 inches to 55 inches with the best picture quality.

Download Here

The EL.MT9602-E features multiple connectivity ports, including AV, three HDMI ports, USB, and a Digital Tuner input (DVB-T/T2, C, S/S2). Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and built-in Apps. EL-MT9602-E firmware files are given below for the technician’s support.

General Specifications & Features :

Brand/Make: LCD/LED 4K Smart Driver Board

Model: EL.MT9602-E T.MT9632.757

Main Chip: MT9632

Supported Resolution: 3480×2160

Screen Format: 16:9

Chipset: MT9632

Platform: M7332

Operating System: Android 11.0

CPU: Cortex A53*4 64-bit

GPU: G52(2EE)MC1

RAM: 1Gb

ROM: 8Gb

Sound Output: 10Wx2

Transmission: DVB-C/DVB-T/T2/S2

Video System: PAL/SECAM

Backlight Voltage: 81V

Backlight Current: 700mA

Backlight Power: NA

AC Input: 110-220V

Firmware Name: CtvUpgrade.bin

Firmware Type: USB Upgradeable

Service Menu Code:

Product: BBK, MAGIC, FUEGO, SKYTECH, VIOS

Note: The following EL-MT9602-E firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
