MB-H352-PW-BL Software Free Download

MB-H352-PW-BL Smart Android Board

MB-H352-PW-BL is a high-speed smart network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 43″ to 55″ screens. It has a powerful wifi system. Smart FHD TV features with Android Platform and great features to entertain, Full HD Wide Screen with better to work SMART feature. The MB_H352_PW-BL Smart Board has multiple ports: A/V, USB interface Ports, and many HDMI ports, Scart, and Headphones. MB_H352_PW-BL has a LAN/RJ45 Ethernet Connector interface port, also for the wired/cable internet network.

Download Here

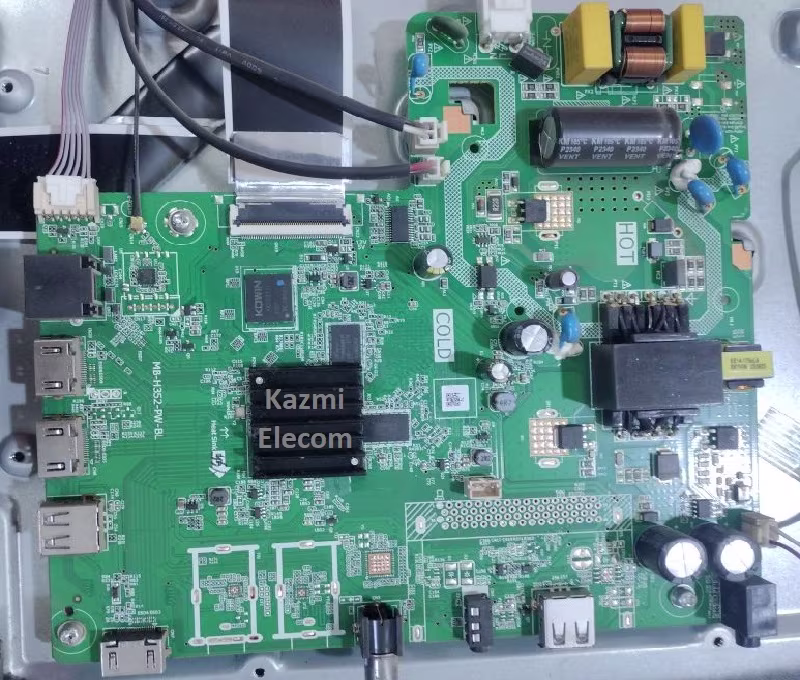

MB-H352-PW-BL is a Combo high-speed Network triple-play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built into it. The Video and Sound quality of the MB_H352_PW_BL Android board are very good, and the Response rate is very efficient. This China smart network board has an Android 12 version. The MB-H352-PW-BL board, bifurcated into two types according to its configuration, is given in the picture below.

Specifications & Features:

Brand/Mark: FHD Smart LED TV Main Board

Main Board Model: MB-H352-PW-BL

Main Chipset: Hi3751V352

Interface: Single/Dual LVDS

TV System: DVB-T/T2/S/S2/C

Operating System: Android 12.0

Ram: 1Gb

Rom: 8Gb eMMC

Backlight: 72 to 79 V 560 mA

Audio Output: 2x8w (8 Ω)

Resolution: up to 1920×1080 (43” to 55″)

Panel Power: 12V

Power Input: 100-240V AC

Service Menu Code: Source/Input 2008, Menu 1201

Firmware Name: HISI352S.bin

Firmware Type: USB Bootable

How to Write MB-H352-PW-BL EMMC Backup:

Download the given MB_H352-PW-BL EMMC backup shared in this post below
Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
JTAG the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following MB_H352-PW-BL firmware is a backup dump file. Kazmi Elecom Team is not responsible for any damage or loss resulting from uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
