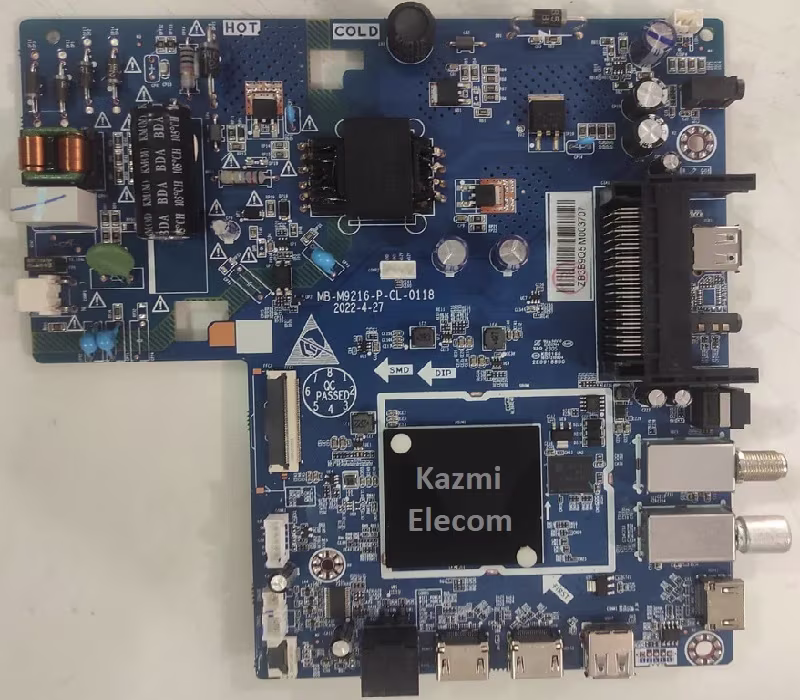

MB-M9216-P-CL-0118 FHD Smart Board
MB-M9216-P-CL-0118 is an Intelligent, smart Android network driver LED TV motherboard with a Full High-Definition 1920×1080 resolution. MB-M9216-P-BL-0012 is dedicated to 60 Hz screens. It is a combo board. It features full connectivity for the input interface. It has multiple input connectivity ports, such as dual HDMI, Mini AV, Coaxial, headphones, Scart Interface, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. MB-M9216-P-CL-0118 is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/NTSC). It features special Bluetooth 5.1 connectivity. This board has an inbuilt WiFi module and LAN interface. The MB-M9216-P-CL-0118 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: MB-M9216-P-CL-0118
Chipset: MT9216A
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 11
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1 GB DDR3

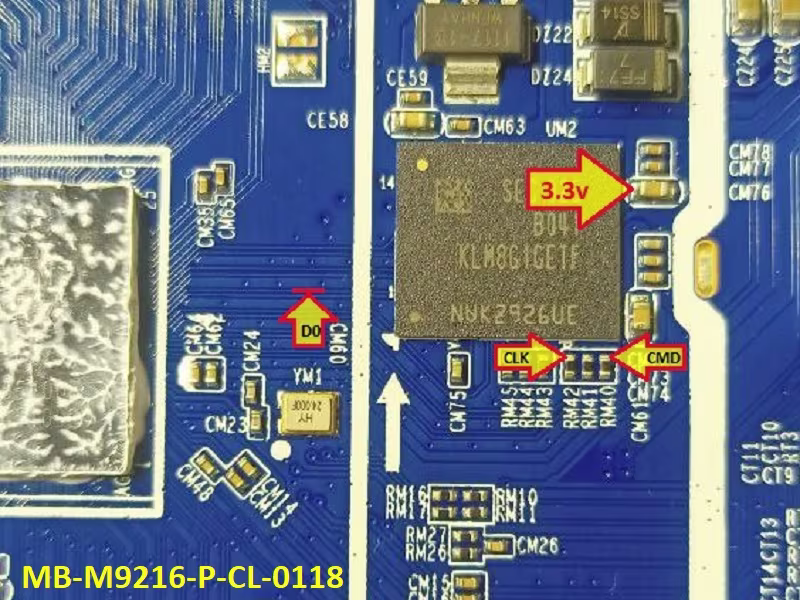

ROM: 8 GB EMMC
Backlight: 60-72V 300mA,
USB Input: 02
HDMI Input: 03
Scart: Yes
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: 5.1
AV Input: Yes (Mini)
Sound Output: 20W DTS-HD
RF TUNER: DVB-C , DVB-S2 , DVB-T , DVB-T2
Video System: PAL/SECAM/NTSC
Firmware: CH_R_2K_upgrade_image_no_tvcertificate.pkg, CH_R_2K_upgrade_image.PKG
Power Input: 100- 240V 50/60 Hz
Product User: DEXP
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading/installing, updating software/firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
MB-M9216-P-CL-0118 Firmware for free download:
