MB-M9612-PW-CL-0157 Software Free Download

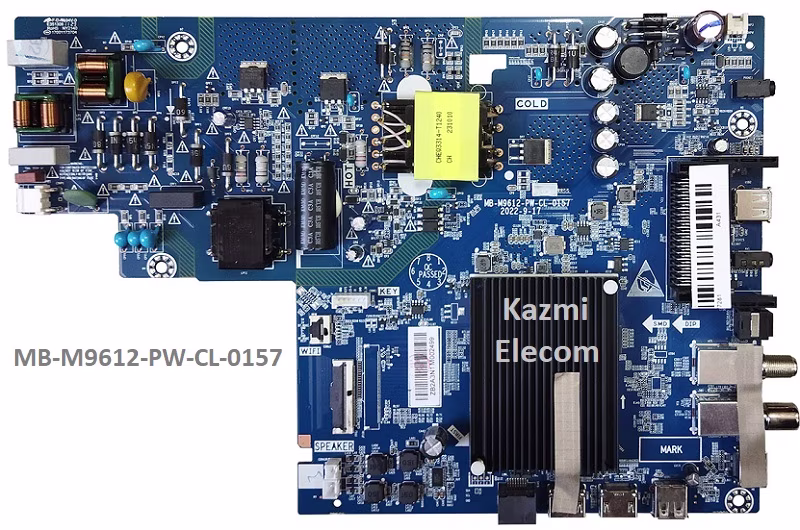

MB-M9612-PW-CL-0157 UHD Board

MB-M9612-PW-CL-0157 is an Intelligent, smart Android network driver LED TV motherboard with an Ultra High-Definition 3840×2160 resolution. MB-M9612-PW-CL-0157 is dedicated to 60 Hz screens. It is a combo board. It features full connectivity for the input interface. It features multiple input connectivity ports, including dual HDMI, Mini AV, Coaxial, headphones, S-Video, optical, USB ports, and an RJ45 Ethernet port for wired internet connectivity.

Download Here

Its USB interface can be used for Firmware upgrades and multimedia playback. MB.M9612.PW-CL-0157 is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/NTSC). It has a special Bluetooth 5.1 connectivity feature. This board has an inbuilt WiFi module and LAN interface. The MB-M9612-PW-CL-0157 Firmware file is given below for the Technician’s support.

General Specifications & Features :

Brand/Make: LCD/LED FHD Smart Android Driver Board

Model: MB-M9612-PW-CL-0157

Chipset: MT9612IAATDC

Supported Resolution: 3840×2160

Screen Format: 16:9

Operating System: Android 11

CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz

GPU: Mali-450 MP3 up to 667MHz

RAM: 1 GB DDR3

ROM: 8 GB EMMC

Backlight: 60-72V 300mA,

USB Input: 02

HDMI Input: 02

Scart: Yes

VGA: No

RJ45 (LAN): Yes

Wifi: Yes

Bluetooth: 5.1

AV Input: Yes (Mini)

Sound Output: 20W DTS-HD

RF TUNER: DVB-C , DVB-S2 , DVB-T , DVB-T2

Video System: PAL/SECAM/NTSC

Product: BLAUPUNKT, DEXP

Power Input: 100- 240V 50/60 Hz

Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
