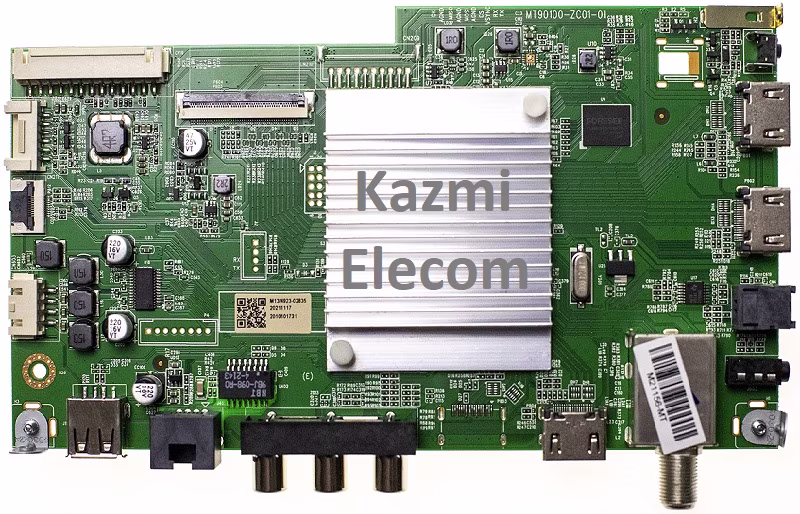

MT90100-ZC01-01 LED TV Board
MT90100-ZC01-01 is an Intelligent, smart Android network driver LED TV motherboard with a Full High Definition 1920×1080 resolution. This board is specifically designed for 50/60 Hz screens. It is a non-combo board. It features full connectivity for the input interface. It features multiple input connectivity ports, including three HDMI, RCA AV, Coaxial, headphones, a single USB port, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. This board features a digital and analog TV tuner integrated into the main board, allowing it to receive both analog and digital television signals. It features a special connectivity option for screen mirroring. This board has an inbuilt WiFi module and LAN interface. The MT90100-ZC01-01 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: MT90100-ZC01-01
Chipset: RTD298
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 4.4
CPU: Dual Core
GPU: Mali-450
RAM: 512MB
ROM: 528 MB NAND FLASH
Backlight: NA
USB Input: 01
HDMI Input: 03
Scart: No
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: No
AV Input: Yes
Sound Output: 16W DTS-HD
RF TUNER: ATV and DTV
Video System: PAL-M/PAL-N/NTSC
Firmware: Type: EMMC Backup
NAND MEMORY: FS33ND04GS108BFI0@BGA63
Firmware Name: NA
Product User: RCA
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
MT90100-ZC01-01 Firmware for free download:
