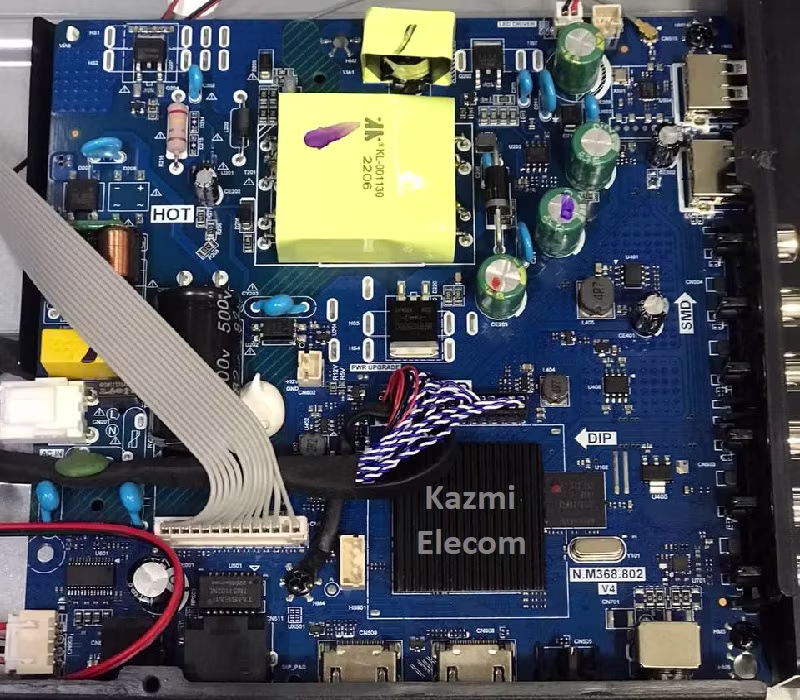

N.M368.802 Smart Android Board
N.M368.802 is a smart Android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, with maximum resolution up to 1920×1080 FHD. N_M368_802 is a three-in-one (combo) board, i.e, power card, backlight driver module, and ATV board integrated into a single motherboard. N-M368-802 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It also has a Wireless interface.
N.M368.802 came with some brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files. N M368 802 supports analog TV signals and digital TV (DVB-C/T/T2). The N-M368-802 firmware file is given below for the technician’s support. If you are facing any issue during firmware installation, then visit and read here first.
General Specifications:
Model: N.M358.802
Main Chipset: MT9255
Resolution Supported: 1920×1080
CPU: Quad-core ARM processor A53
GPU: Dual Core
OS: Android 9.0
Ram: 1 GByte
Rom: 8GByte emmc flash
Audio Output Power: 2X8 W (8Ω)
Backlight: 33-105v 700mA
Backlight Power: 75w
Service Code: Menu 1147
Firmware File: MstarUpgrade368.bin
Firmware Type: USB-upgradeable Firmware
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading, installing, or updating software, firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
N.M368.802 Firmware for free download:
