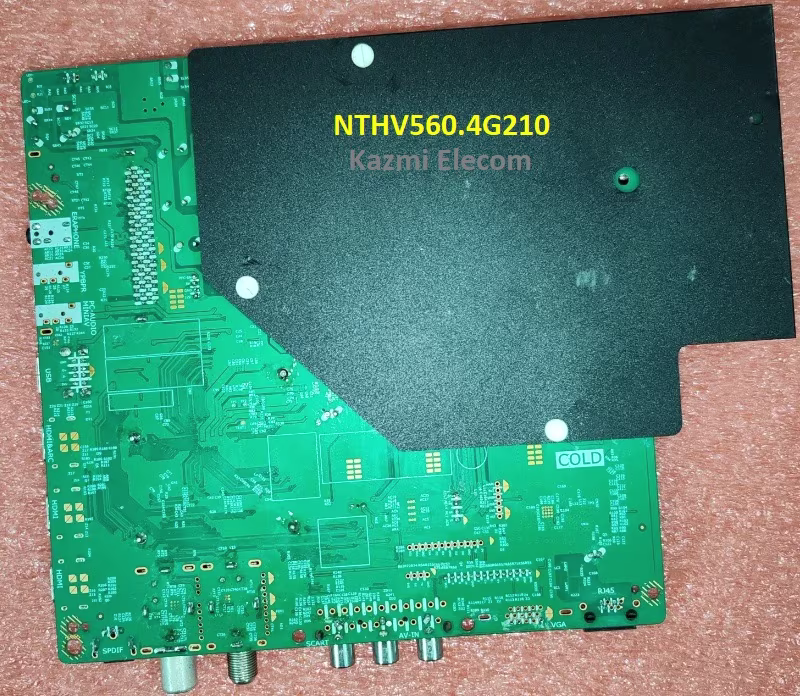

NTHV560.4G210 4K Smart Board
NTHV560.4G210 is a UHD smart Android 3 In 1 WiFi LED TV motherboard. This motherboard supports 4K 2160 Pixels Ultra HD 3840×2160 screen resolution. This board is a non-combo LED TV board. The main input power supply circuit module is required separately, while the Cable TV tuner and the LED backlight driver module are built into a single piece of printed circuit board (PCB). The ROM storage capacity of this motherboard is 8GB, which is sufficient for the user to install and play new applications of their own choice and enjoy.
NTHV560.4G210 LED TV smart Android mainboard has several input-output ports for user connectivity. It has triple HDMI input ports for connecting digital full-HD devices. It has an RJ45 Ethernet connection interface for wired internet connectivity to get faster and smoother internet results. It has a mini component input for analog device connectivity. It has a Digital audio optical out (SPDIF) and a cable TV tuner. It has a USB interface port for software upgrades and multimedia playback.
General Information:
Board Model: NTHV560.4G210 LA.017.22301880.0025VER00.06
Main Chipset: Hi3751V553
CPU: Quad-Core
GPU: Mali-450
Android Version: Android 14
Resolution: 3840×2160
Audio Power: 2x10W (20 watt 8 ohm)
Backlight Volt: 84-95.2V
Backlight Current: 500
Backlight Power: NA
USB Ports: 2
HDMI Ports: 3
CI: No
Component: Yes
RJ45: Yes
Tuner: ATV and DTV
Wifi: Yes
Mira-Cast: Yes
Bluetooth: 5.0
Memory (RAM): 1GB DRAM
Storage (ROM): 8GB EMMC Flash
Power Rating: 110V~240V 50Hz
Power Consumption: 105Watt
Firmware Name: NTHV560_4G210.bin, usb_update.bin
Firmware Type: USB Bootable
Product User: MAGIC
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
NTHV560.4G210 Firmware files for free download:
