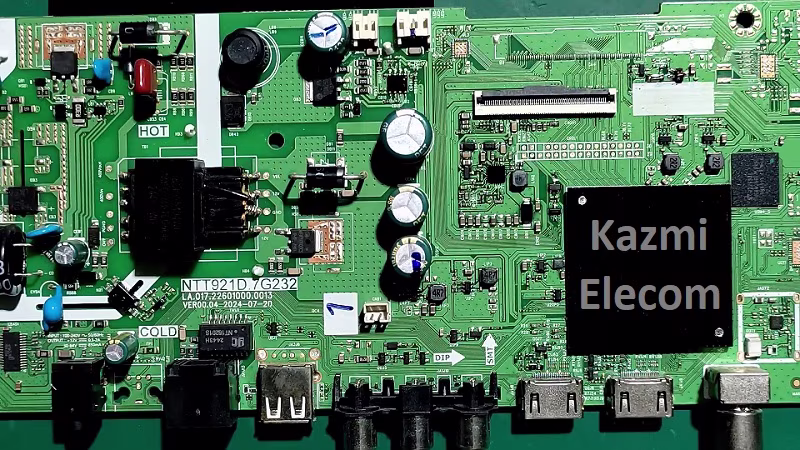

NTT921D.7G232 Smart Android Board
NTT921D.7G232 is a three-in-one keen Android-driven TV controller board. The bolstered determination is Full HD 1920×1080, which is appropriate for the LVDS interface and can be fitted for numerous HD and FHD screen panels. This is a Combo board that has an inbuilt Control Module, a Driven Backdrop illumination Driver Module, and a TV tuner in a single PCB board. So, no requirement to introduce an isolated control card or backdrop illumination inverter board. The Backdrop illumination driver module capacity is 35-110 V with a maximum current of 650 mA, and the control capacity is 75 watts. The sound and video graphics quality of this board is very excellent.
NTT921D.7G232 has all the necessary network interface ports for the client, as per current requirements. It has numerous USB ports to play media records and to introduce firmware files. It has too numerous HDMI ports as well for interfacing Full HD gadgets like Blu-ray and gaming comforts. RCA ports are accessible for the network. RJ45 association for wired web and to have a WIFI network. Earphone jack and RF tuner for cable TV. NTT921D.7G232 firmware records are provided below for the support of professionals to recover dead-stuck LED TVs.
General Specifications:
Board Model: NTT921D.7G232 LA.017.22601000.0013 VER00.04
Main Chipset: Amlogic T921D-N5
Resolution Supported: 2K
CPU: A53*4
GPU: IMG7800
OS: Android 9
Ram: 512Mb
Rom: 4 Gb
Audio Output Power: 2X10 W (8Ω)
Backlight: 35-110V 650 mA
Backlight Power: 75W
Service Code:
Firmware File: allupgrade_aml921_4G_sos.bin
Firmware Type: EMMC Backup Dump
Note: The following firmware is an EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first. Always keep a backup before writing the flash.
NTT921D.7G232 Firmware file for Free Download:
