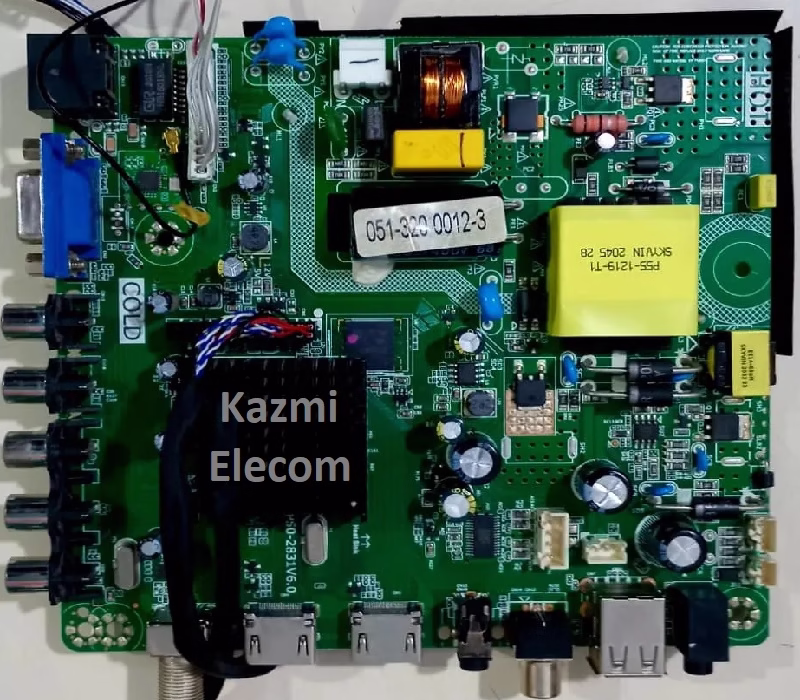

P50-2831V6.0 Smart Android Board
P50-2831V6.0 is a high-speed smart network DVB-T2 universal driver board with an FHD resolution of 1920×1080. It is dedicated to 26″ to 49″ screens. It has a powerful wifi system. Smart FHD TV features with Android Platform and great features to entertain, Full HD Wide Screen with better to work SMART feature. P75-2831 V6.0 Smart Board has multiple ports: A/V, USB interface Ports, and many HDMI ports as well, in addition to VGA, Scart (Optional), and Headphones. P50_2831_V6.0 has a LAN/RJ45 Ethernet Connector interface port, also for the wired/cable internet network.
P50.2831.V6.0 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built into it. The Video and Sound quality of the P50-2831-V6.0 Android board is very good, and the Response rate is very efficient. P50.2831.V6.0 China smart network board has an Android 7.1 version.
Specifications & Features:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: P50-2831V6.0
Main Chipset: RTD2831
Interface: Single/Dual LVDS
TV System: DVB-T/T2/S/S2/C
Operating System: Android 7.1
CPU: ARM Cortex A53 Four Core
CPU Frequency: 1.4GHz
GPU: Multi-core Mali-470MP2
Ram: 1Gb

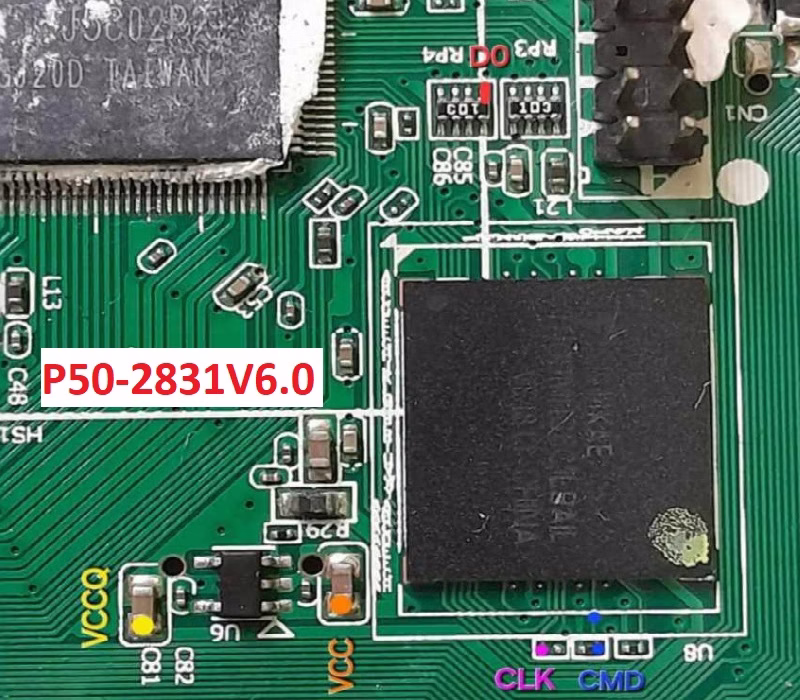

Rom: 8Gb eMMC
Backlight: 45 watts
Audio Output: 2x8w (8 Ω)
Resolution: up to 1920×1080 (26” to 49″)
Panel Power: 12V
Power Input: 100-240V AC
Firmware Type: USB Upgrade
Firmware Name: install.img, rtk2831.img
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
P50-2831V6.0 Firmware for free download:
