RSAG7.820.10071 Software Free Download

RSAG7.820.10071 Smart Board

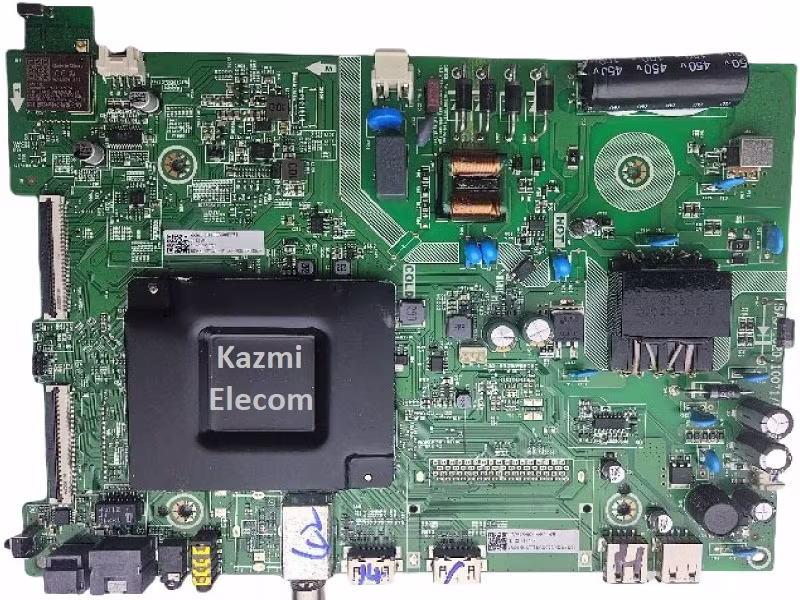

RSAG7.820.10071 is a smart LED TV board. Its supported resolution is 1080P 1920×1080. This board is mostly used for Hisense and Devant brands. It is a non-Android board. The VIDDA smart operating system is installed in this motherboard. This is a Combo board, which means the main input power supply board, as can be seen in the picture below, the backlight inverter module, and the cable TV tuner are built on a single piece of printed circuit board (PCB). This board has built many apps like YouTube, Netflix, Kids YouTube, Prime Video, and Vidaa Art. It also has the Vidaa store option to download apps.

Download Here

RSAG7.820.10071 can support the sharing of context and screen with external devices. It has multiple input-output interfaces, such as LAN (Local Area Network) connection, RJ45 Ethernet socket interface for wired internet connectivity to work smoothly, and fast internet browsing. Dual HDMI slots for connecting Full HD devices, Dual USB inputs for software upgrades and connecting USB devices, and a Component input interface for connecting Analog devices. It has an optical output port. It also has a headphone output interface jack of 3.5mm, and a cable TV tuner.

RSAG7.820.10071 General Information:

Board Model: RSAG7.820.10071/ROH

Processor: MediaTek MT5659DEHT

CPU: Quad-Core 1.0GHz

GPU: Dual-Core MALI-400

Operating System: VIDAA U2.5

Android Version: NA

Resolution: 1920×1080

Audio Power: 2x7W (14 watts 8 ohms)

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 2

CI: No

PC Input: No

Component: Yes

RJ45: Yes

Analog Tuner: Yes

Digital Tuner: DVB

Wifi: Yes

Mira-Cast: Yes

SPDIF OUT: Yes

Memory (RAM): 512 Mb

Storage (ROM): 4 GB EMMC Flash

EMMC: KLM4G1FETE

Power Rating: 100V~240V 50/60Hz

Power Consumption: 70Watt

Firmware Name: usb_MTK_DEV_SA.bin

Firmware Type: EMMC Backup Dump

Product User: Hisense

How to Write RSAG7.820.10071 EMMC Backup:

Download the given RSAG7-820-10071 EMMC backup shared in this post below
Note the EMMC Pinouts in the given picture above
JTAG the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following RSAG7-820-10071 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
