RSAG7.820.5842 LED TV Board
RSAG7.820.5842 is a HD and FHD DVB LED TV Android Smart Board. It supports up to a Full HD resolution of 1920×1080 and a Refresh Rate of 50/60 hertz without 3D technology. It has dual HDMI input ports to connect full HD devices such as set-top boxes, Blu-Ray players, and gaming consoles. It has multiple USB ports to connect external hard disk drives and other USB devices and play multimedia files. It has a Dolby Sound system that supports 20 Watts of sound output and HDR Display viewing. It has dual Tuners for Analog and Digital broadcasting signal reception.
RSAG7.820.5842 firmware files are given below for free of cost download to support technicians. This board is three-in-one and is also called a Combo Board. This is a single Printed Circuit motherboard on which the main power input Supply circuit module, Cable TV tuners, and LED Backlight inverter circuit are built together. So, there is no need for an extra module to complete the LED TV setup. Analog Signal reception is NTSC/PAL/SECAM; for Digital signal reception, the protocols are DVB-T, DVB-C, and DVB-S2.
General Features & Specifications:
Brand: China
Board Model: RSAG7.820.5842/ROH
Display Format: Full HD 1080P
Screen Type: LED
Features Format: Smart
OS Version: Android
Chipset: Mstar
Processor: Dual-Core
Graphics Processor: Dual-core
RAM Capacity: GB DDR3
Storage Memory: GB ROM
Screen Resolution: 1920×1080
No of HDMI Ports: 2
No of USB Ports: 1
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output: 20W (10W*2)
Tuner: ATV/DTV (NTSC/PAL/SECAM)/(DVB-T, DVB-C, DVB-S2)
Firmware Type: NAND Backup

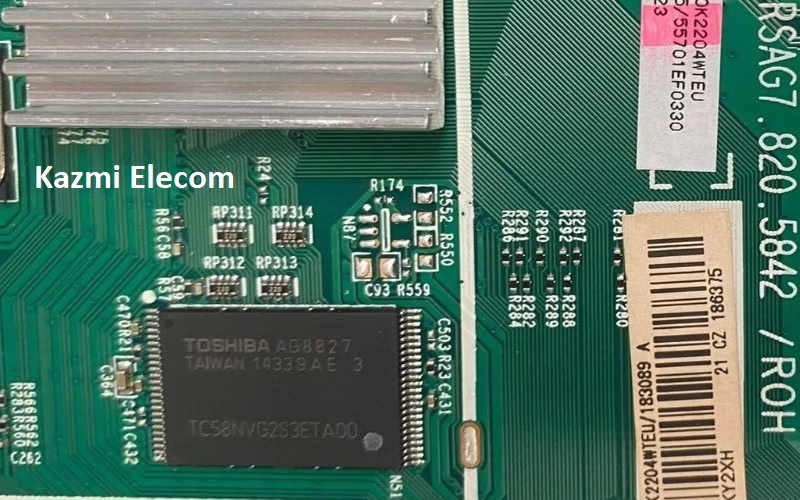

NAND Memory: TC58NVG2S3ETA00
Product: Hisense
Note: The following firmware is a NAND backup and EEPROM file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, orare facing any issues during firmware installation, then visit and read here first.
RSAG7.820.8869 Firmware for free download:
