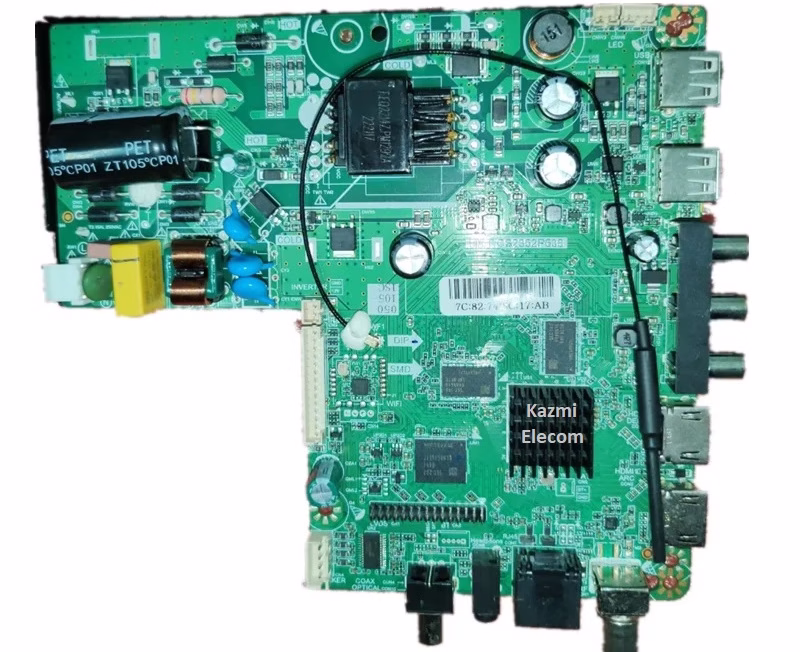

S.T.CS2352P638 Smart Android Board
S.T.CS2352P638 is an Intelligent, smart Android network driver LED TV motherboard with a Full High Definition 1920×1080 resolution. S-T-CS2352P638 is specifically designed for 60 Hz screens. It is a combo board. It features full connectivity for the input interface. It has multiple input connectivity ports like triple HDMI, Mini AV, Coaxial, headphones, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. S-T-CS2352P638 features a digital and analog TV tuner integrated into the main board, allowing it to receive both analog and digital television signals. It has a special connectivity feature of Bluetooth 5.1. This board has an inbuilt WiFi module and LAN interface. The S.T.CS2352P638 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: S.T.CS2352P638
Chipset: HI3751V553
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 12
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1 GB DDR3
ROM: 8 GB EMMC
Backlight: 35-51V 700mA
USB Input: 02
HDMI Input: 02
Scart: No
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: 5.1
AV Input: Yes
Sound Output: 20W DTS-HD
RF TUNER: ATV
Video System: PAL/SECAM/NTSC
Firmware: Type: EMMC Backup

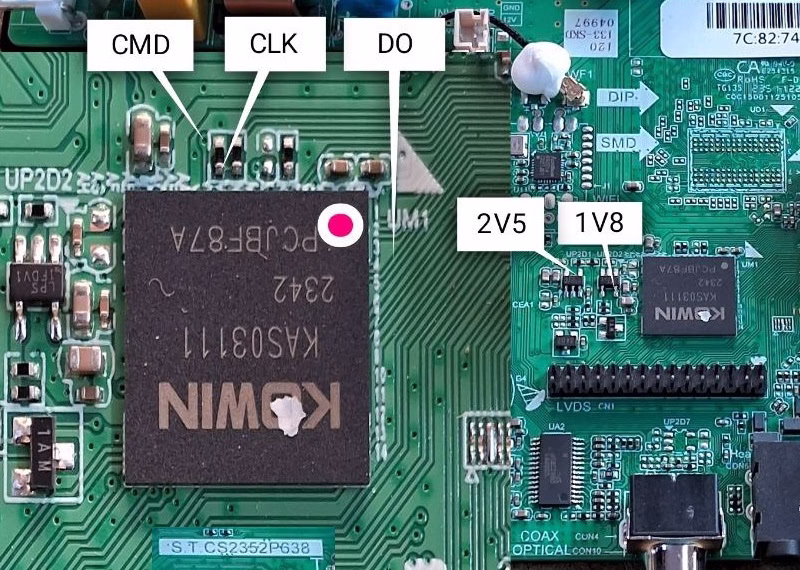

EMMC: KOWIN KAS03111
Firmware Name: usb_update.bin
Product User: PREMIER
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
S.T.CS2352P638 Firmware for free download:
