S.T.CS2352P681 Software Free Download

S.T.CS2352P681 Smart Android Board

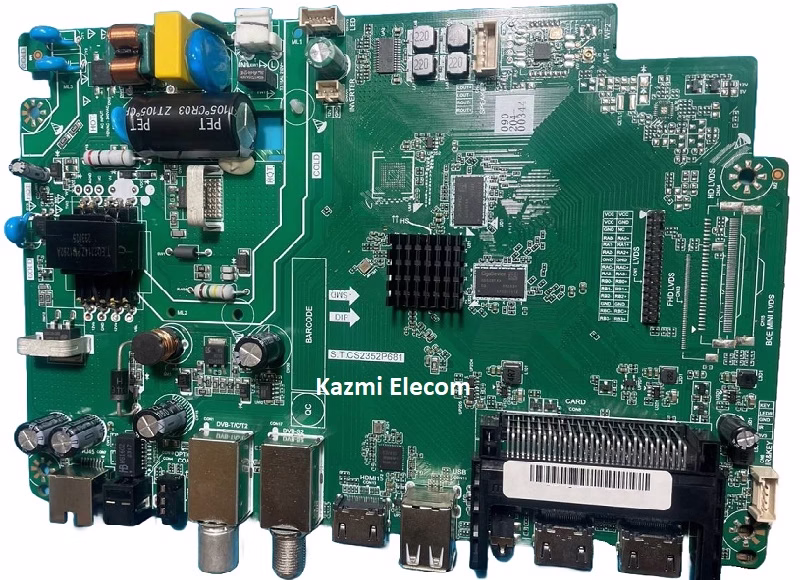

S.T.CS2352P681 is an Intelligent, smart Android network driver LED TV motherboard with a Full High Definition 1920×1080 resolution. S-T-CS2352P681 is dedicated to 60 Hz screens. It is a combo board. It features full connectivity for the input interface. It has multiple input connectivity ports like triple HDMI, Mini AV, Coaxial, headphones, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.

Download Here

Its USB interface can be used for Firmware upgrades and multimedia playback. S-T-CS2352P681 has a digital and analog TV tuner built into the main board, which can receive analogand digital television signals. It has a special connectivity feature of Bluetooth 5.1. This board has an inbuilt WiFi module and LAN interface. The S.T.CS2352P681 Firmware file is given below for the Technician’s support.

General Specifications & Features :

Brand/Make: LCD/LED FHD Smart Android Driver Board

Model: S.T.CS2352P681

Chipset: HI3751V553

Supported Resolution: 1920×1080 FHD 1080P

Screen Format: 16:9

Operating System: Android 12

CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz

GPU: Mali-450 MP3 up to 667MHz

RAM: 1 GB DDR3

ROM: 8 GB EMMC

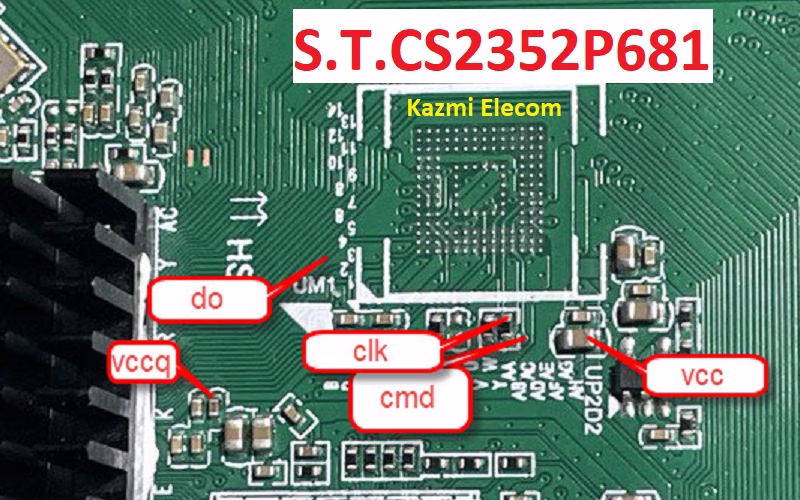

EMMC: KLM8G1GETF

Backlight: 35-110V 600mA 65W1

USB Input: 02

HDMI Input: 03

Scart: Yes (Optional)

VGA: No

RJ45 (LAN): Yes

Wifi: Yes

Bluetooth: 5.1

AV Input: Yes

Sound Output: 20W DTS-HD

RF TUNER: Dual

Video System: PAL/SECAM/NTSC

Firmware: Type: USB Bootable and EMMC Backup

Firmware Name: usb_update.bin

Product User: VESTA, ARTEL

Note: The following firmware is a USB bootable and EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
