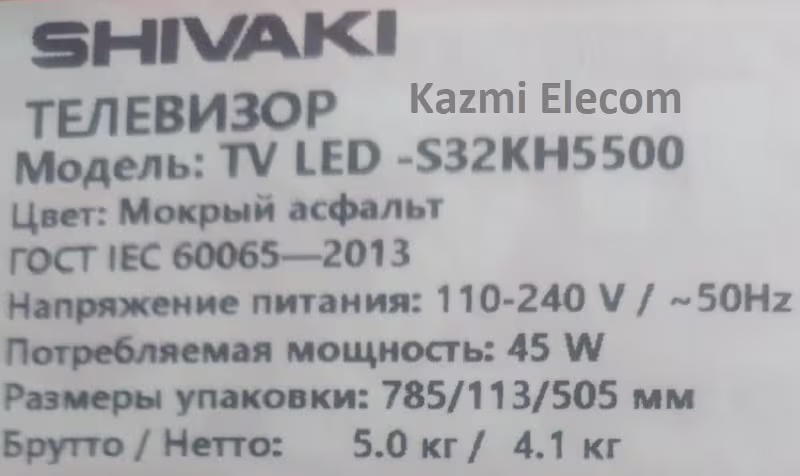

Shivaki S32KH5500 LED TV
Shivaki S32KH5500 is a 32-inch smart Android LED TV. Its maximum supported screen resolution is 1366×768 HD 720P. It has several input-output user connectivity interfaces, such as a headphone output jack of 3.5mm to amplify the audio output. For connecting Analog devices, it has an RCA (Component) input interface. For connecting digital Full HD devices, it has three HDMI ports by which users can connect several full HD devices such as Blu-ray players, Playstations, Gaming consoles, Media Players, etc. It has a dual USB input interface for connecting hard disk drives and other USB devices, and for upgrading software purposes.
Shivaki S32KH5500 has a three-in-one Android smart LED TV motherboard. It is also called a Combo network LCD LED TV driver board. It is built with three major parts on a single PCB: the cable TV tuner, the LED backlight inverter driver controller circuit module, and the main power input supply module. This board has a 48-pin LVDS connector interface for LCD LED TV Screen Panels. It has 1 GB of memory (RAM) and 4 GB of storage memory (ROM) capacity. The main processor is a quad-core ARM Cortex-A53 made by Novatek (NT72563MBG-TU). The graphics and sound quality of this board are excellent.
General Features and Specifications:
Brand: Shivaki
Model: S32KH5500
Mainboard: 5RT841A1S 201-MT841E1N-24
CHIPSET: RTD2841
POWER To Panel: 12V
CPU: Quad-Core
RAM: 1.5 GB
ROM: 8GB EMMC Flash
Resolution Format: 1080
OS: Android 9.0
HDMI Input: 03
USB Input: 02
RCA Component: Yes
VGA: No
SPDIF: Yes
Backlight: 36-40.8V OR 72-81.6V 300mA OR 600mA
Network: Support Ethernet, WIFI, 3G
System update: Support USB/SD update
AC Input Requirement: 100 ~ 240V
Low power consumable mode: standby≤0.5W
Firmware Name: Install.img
Firmware Type: USB Bootable
Note: The following Shivaki S32KH5500 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any damage or loss resulting from uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
Shivaki S32KH5500 Firmware files for free download:
