SKYWORTH 43TB7000 Smart LED TV
SKYWORTH 43TB7000 is a 43-inch FHD LED TV with Android Smart. It supports up to an HD resolution of 1920×1080 and a Refresh Rate of 50/60 hertz without 3D technology. It has dual HDMI input ports to connect full HD devices such as set-top boxes, Blu-Ray players, and gaming consoles. It features multiple USB ports for connecting external hard disk drives and other USB devices, as well as playing multimedia files. The Dolby Sound system supports 16 Watts of sound output and HDR Display viewing. It has dual Tuners (Optional) for Analog and Digital broadcasting signal reception.

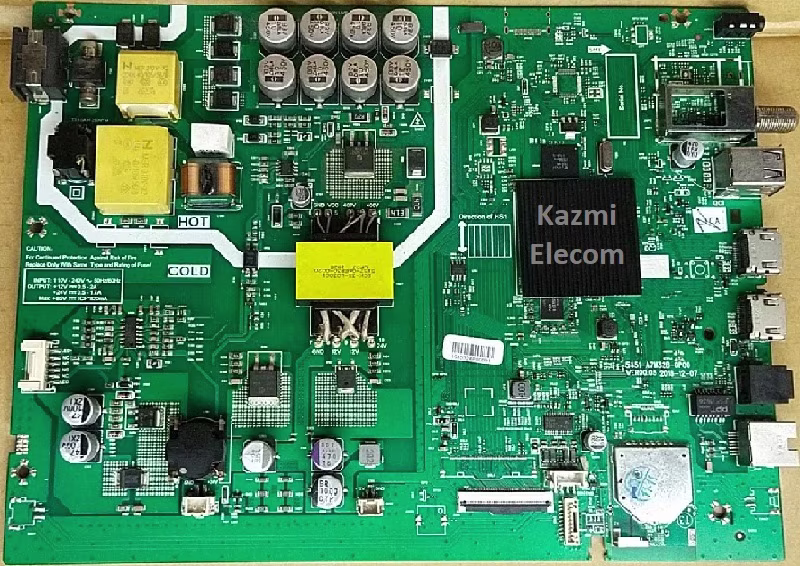

SKYWORTH 43TB7000 USB bootable firmware files are given below for free of cost download to support technicians. This board is a three-in-one device, also known as a Combo Board. This is a single Printed Circuit motherboard on which the main power input Supply circuit module, Cable TV tuners, and LED Backlight inverter circuit are built together. So, there is no need for an extra module to complete the LED TV setup. Analog Signal reception is NTSC/PAL/SECAM; for Digital signal reception, the protocols are DVB-T, DVB-C, and DVB-S2.
General Information:
Brand: Skyworth
Model: 43TB7000
Board Model: 5851-A7M32B-0P00
CPU: CA53 Quad Core 1.1 GHz
GPU: Mali470 Triple Core
Smart platform: Android 9.0
Resolution: 1920×1080
Audio Power: 2x6W (12 watts)
Backlight Current: 380-620 mA
Backlight Voltage Range: 40-114 Volt
USB Ports: 2
HDMI Ports: 2
CI: No
Component: Yes
RJ45: Yes
Analog Tuner: PAL, SECAM, NTSC
Digital Tuner: DVB-S, DVB-S2, DVB-T, DVB-T2
Wifi: Yes
Mira-Cast:
Memory (RAM): 1GB DRAM
Storage (ROM): 8 GB EMMC Flash
Power Rating: 110V~240V 50/60Hz
Power Consumption: 75Watt
Firmware Name: upgrade_loader_no_tvconfig.pkg
Firmware Type: USB Bootable
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, visit and read here first.
SKYWORTH 43TB7000 Firmware files for free download:
