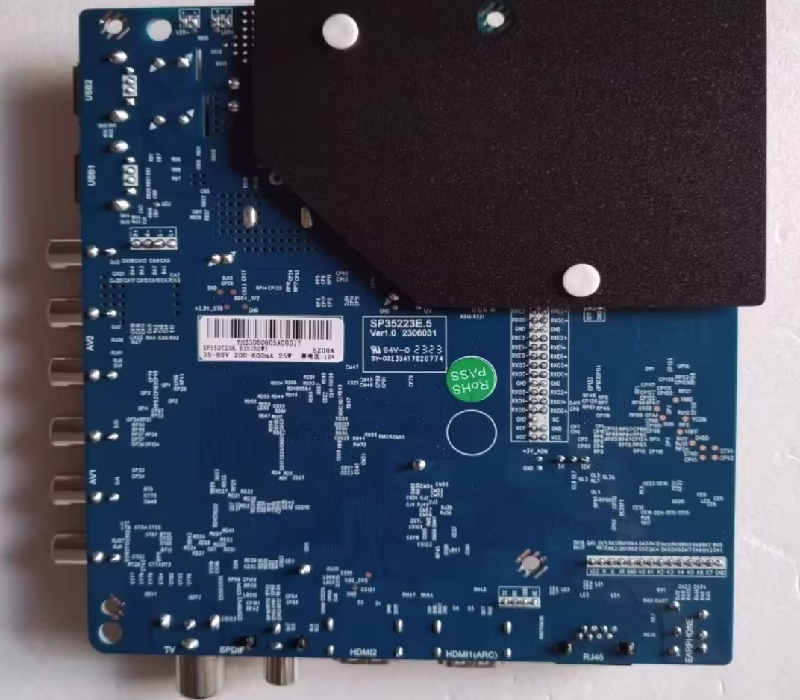

SP35223E.5 Smart Board
SP35223E.5 is a universal smart with a Full High Definition resolution 1920×1080 driver motherboard with the latest Android version of 11. SP35223E-5 is a universal Combo three-in-one board with a built-in 50-watt backlight driver module and AC220 main supply input circuit, but without a cable TV tuner. SP35223E.5 can support many panel screens from 32 inches to 39 inches with the best picture quality. This board has a Coaxial output port for digital audio amplification.
SP35223E.5 has multiple connectivity ports like AV, dual HDMI, dual USB, and an RJ45 Ethernet interface. Its special features are the Mirroring option, WiFi support, and built-in Apps. SP35223E-5 firmware files are given below for the technician’s support. Resolution codes are built into the given software, and resolution code details are given below for the user. It means no need to install separate software for HD or Full HD resolution. The user can change the resolution by the given code.
Technical Specifications & Features :
Brand/Make: LCD/LED 2K Smart Driver Board
Model: SP35223E.5
Supported Resolution: 1920×1080 FHD
Screen Format: 16:9
Chipset: HI352T
Platform: MT5862
Operating System: Android 11.0
CPU: ARM Cortex-A53 quad-core
GPU: Mali-400
RAM: 1 GB
ROM: 8 GB
Sound Output: 8Wx2
Tuner: Yes
Video System: PAL/SECAM
Backlight Voltage: 35- 80V
Backlight Current: 200- 600mA
Backlight Power: 75W
AC Input: 220V
Firmware Name: VS_HI352E_1G.bin
Firmware Type: USB Bootable
Service Menu Code: Input/Menu 208
Note: The following software is USB bootable and provided for Technician support. Kazmi Elecom Team is not responsible for any damage or loss caused by uploading or downloading the firmware. If you are new and lack knowledge of loading or installing software, firmware, or dumping files, read here first.
SP35223E.5 firmware files for free download:
