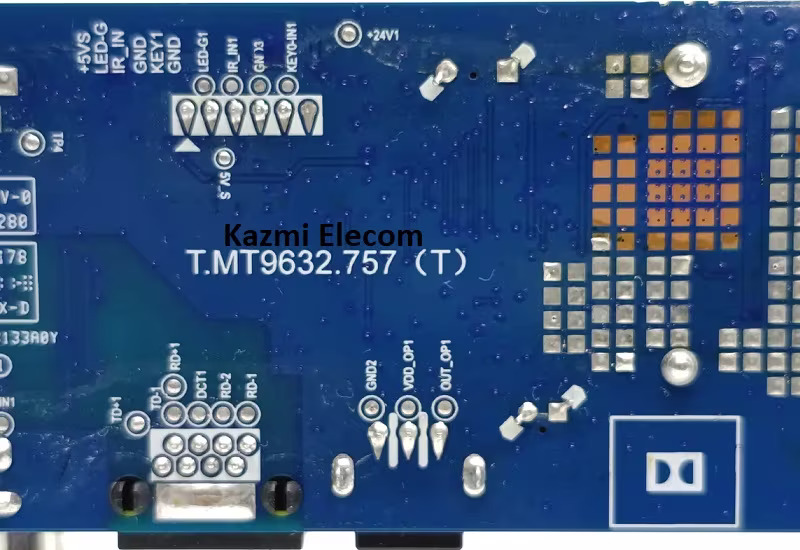

T.MT9632.757 UHD Smart Board
T.MT9632.757 is an analog and digital 4K UHD smart Android board with a resolution of 3840×2160, a supported smart Android board with the latest Android version of 11.0. EL-MT9602-E is a universal module without a backlight driver circuit and a power supply module. T-MT9632-757 can support many panel screens from 15.6 inches to 55 inches with the best picture quality.
The T.MT9632.757 features multiple connectivity ports, including AV, three HDMI ports, USB, and a Digital Tuner input (DVB-T/T2, C, S/S2). Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and built-in Apps. T-MT9632-757 firmware files are given below for the technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED 4K Smart Driver Board
Model: T.MT9632.757/EL.MT9602-E
Main Chip: MT9632
Supported Resolution: 3480×2160
Screen Format: 16:9
Chipset: MT9632
Platform: M7332
Operating System: Android 11.0
CPU: Cortex A53*4 64-bit
GPU: G52(2EE)MC1
RAM: 1Gb
ROM: 8Gb
Sound Output: 10Wx2
Transmission: DVB-C/DVB-T/T2/S2
Video System: PAL/SECAM
Backlight Voltage: 81V
Backlight Current: 700mA
Backlight Power: NA
AC Input: 110-220V
Firmware Name: CtvUpgrade.bin
Firmware Type: USB Upgradeable
Service Menu Code:
Product: BBK, MAGIC, FUEGO, SKYTECH, VIOS
Note: The following T-MT9632-757 firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
T.MT9632.757 Firmware files for free download:
