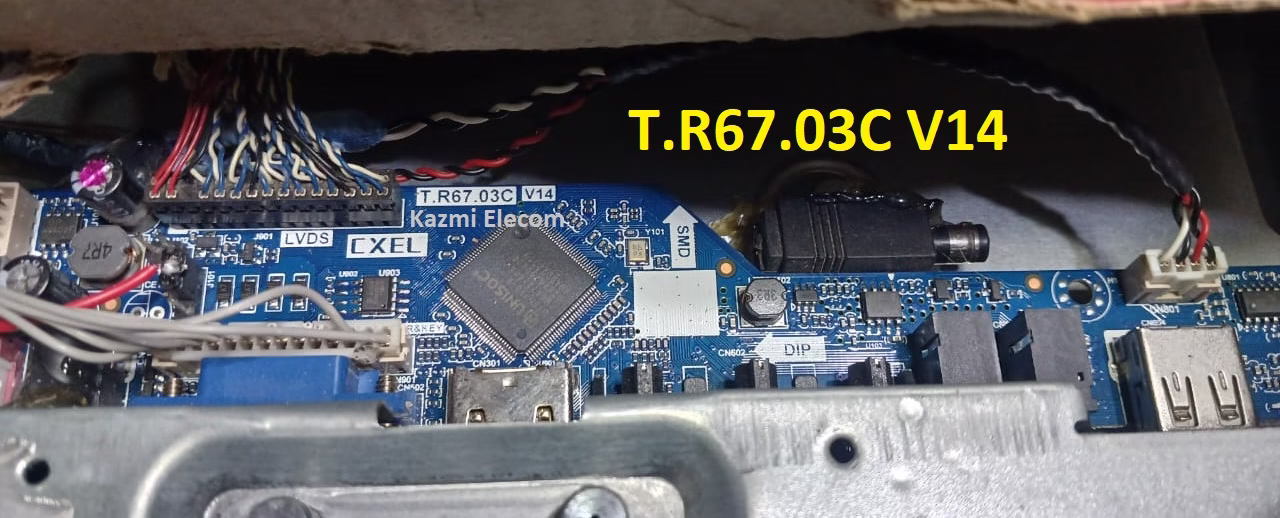

T.R67.03 V14 Universal Board
T.R67.03 V14 is a universal jumper board with multi-resolution software.
Basic Info:
Model No. T.R67.03 V14
Main Chipset: UTS6710-X
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Tuner: 5160
Sound: CD1517CP
Bin Name: YDG.6710.bin, YDG_6710.code.bin
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software into the FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of the LCD/LED TV
- Switch ON the power and Wait until even the IR indicator led stops flashing
- Done. Unplug the U-disk (It will take a max half min to upgrade firmware)
Factory Service Mode:
Menu+1147 & Source/Input+208
Multi-Resolution Code:
- INPUT/SOURCE 03661 FOR 1920X1080
- INPUT/SOURCE 03662 FOR 1366X768
- INPUT/SOURCE 03663 FOR 1280X1024
- INPUT/SOURCE 03664 FOR 1440X900
- INPUT/SOURCE 03665 FOR 1600X900
- INPUT/SOURCE 03666 FOR 1680X1050
- INPUT/SOURCE 03667 FOR 1024X768
T.R67.03 V14 Firmware All resolutions Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.R67.03-V7_1024x768_USB | Download |
| 2 | T.R67.03-V7_1280x800_USB | Download |
| 3 | T.R67.03-V7_1280x1024_USB | Download |
| 4 | T.R67.03-V7_1366x768_USB | Download |
| 5 | T.R67.03-V7_1440x900_USB | Download |
| 6 | T.R67.03-V7_1600x900_USB | Download |
| 7 | T.R67.03-V7_1600x1200_USB | Download |
| 8 | T.R67.03-V7_1680x1050_USB | Download |
| 9 | T.R67.03-V7_1920x1080_USB | Download |
| 10 | T.R67.03-V7_1920x1200_USB | Download |
| 11 | T.R67.03-V7-1024x768-TSUMV53-USB-NEW | Download |
| 12 | T.R67.03-V7-1366x768-TSUMV53-USB-NEW | Download |
| 13 | T.R67.03-V7-1440x900-TSUMV53-USB-NEW | Download |
| 14 | T.R67.03-V7-1600x900-TSUMV53-USB-NEW | Download |
| 15 | T.R67.03-V7-1600x1200-TSUMV53-USB-NEW | Download |
| 16 | T.R67.03-V7-1680x1050-TSUMV53-USB-NEW | Download |
| 17 | T.R67.03-V7-1920x1080-TSUMV53-USB-NEW | Download |
| 18 | T.R67.03-V7-1920x1200-TSUMV53-USB-NEW | Download |
| T.R67.03-V7-1280x1024-TSUMV53-DUMP | Download |
