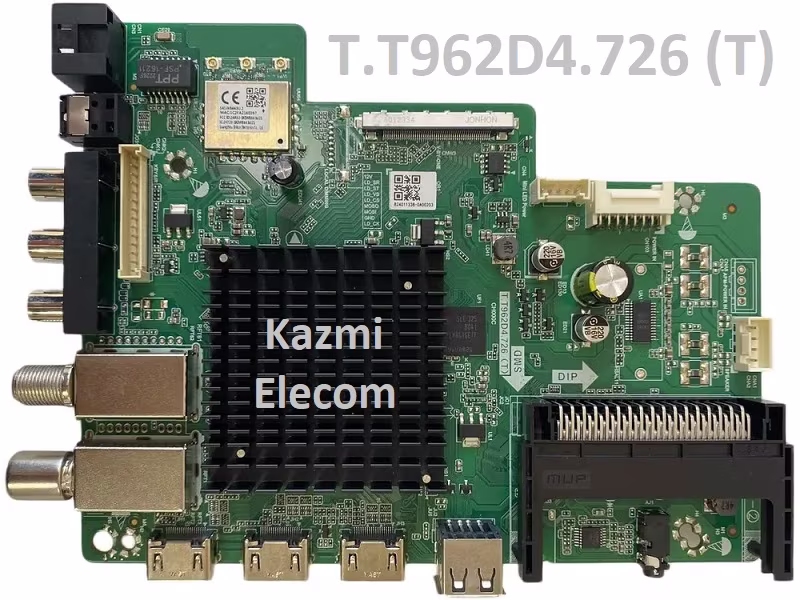

T.T962D4.726 UHD Smart Board
T.T962D4.726 is an analog and digital 4K UHD smart ATV & DTV motherboard with a resolution of 3840×2160, a supported smart Android board with the latest Android version of 13.0, and a screen refresh rate is 120Hz. T.T962D4.726 is a non-combo universal board without a backlight driver circuit and a power supply module. T.T962D4.726 can support many panel screens from 55 inches to 85 inches with the best picture quality. It has 30 Watts Output, Integrated dual speakers for Smart Audio, and the best Stereo Sound with 4 4-mode equalizer.
T.T962D4.726 has multiple connectivity ports like AV, three HDMI, USB, and Digital Tuner input (DVB C, T/T2, S/S2). Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and built-in Apps. T.T962D4.726 firmware files are given below for the technician’s support. It has 178 Degree Viewing angles and a Response Time is 8.5 ms. Its Contract Ratio is 5000:1 and its Maximum colors are 16.7M.
General Specifications & Features :
Brand/Make: LCD/LED 4K Smart Driver Board
Model: T.T962D4.726 (T)
Supported Resolution: 3480×2160
Screen Format: 16:9
Chipset: Amlogic AML962D4H
Platform:
Operating System: Android 13.0
CPU: Cortex A53*4 64-bit
GPU: Mali-G31
RAM: 2Gb
ROM: 16Gb
Sound Output: 15Wx2
Transmission: DVB-C, T/T2, S/S2
Video System: PAL/SECAM
Backlight Voltage: NA
Backlight Current: NA
Backlight Power: NA
Bluetooth: 5.1
AC Input: 110-220V
Firmware Name: allupgrade_aml962d4_an13_16G_2GB_100.img
Firmware Type: USB Upgradeable
Service Menu Code:
Product: SBER
How to Load Firmware:
1. Download the firmware file and unzip it.
2. Copy the allupgrade_amlxxx.img file to the root folder of an empty FAT32-formatted USB flash drive.
3. Use a device with at least 4GB of storage.
4. Unplug the TV from the power outlet.
5. Insert the flash drive with the file into the USB port of the TV.
6. Connect the TV to the power outlet.
7. After 10-15 seconds, an image with a progress bar will appear on the screen – this means that the firmware update has begun.
8. When the firmware progress reaches 100%, remove the USB flash drive from the TV.
9. Disconnect the TV from the power supply and connect it again.
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
T.T962D4.726 firmware files for free download:
