TP.MS3393.PB851 Software Free Download

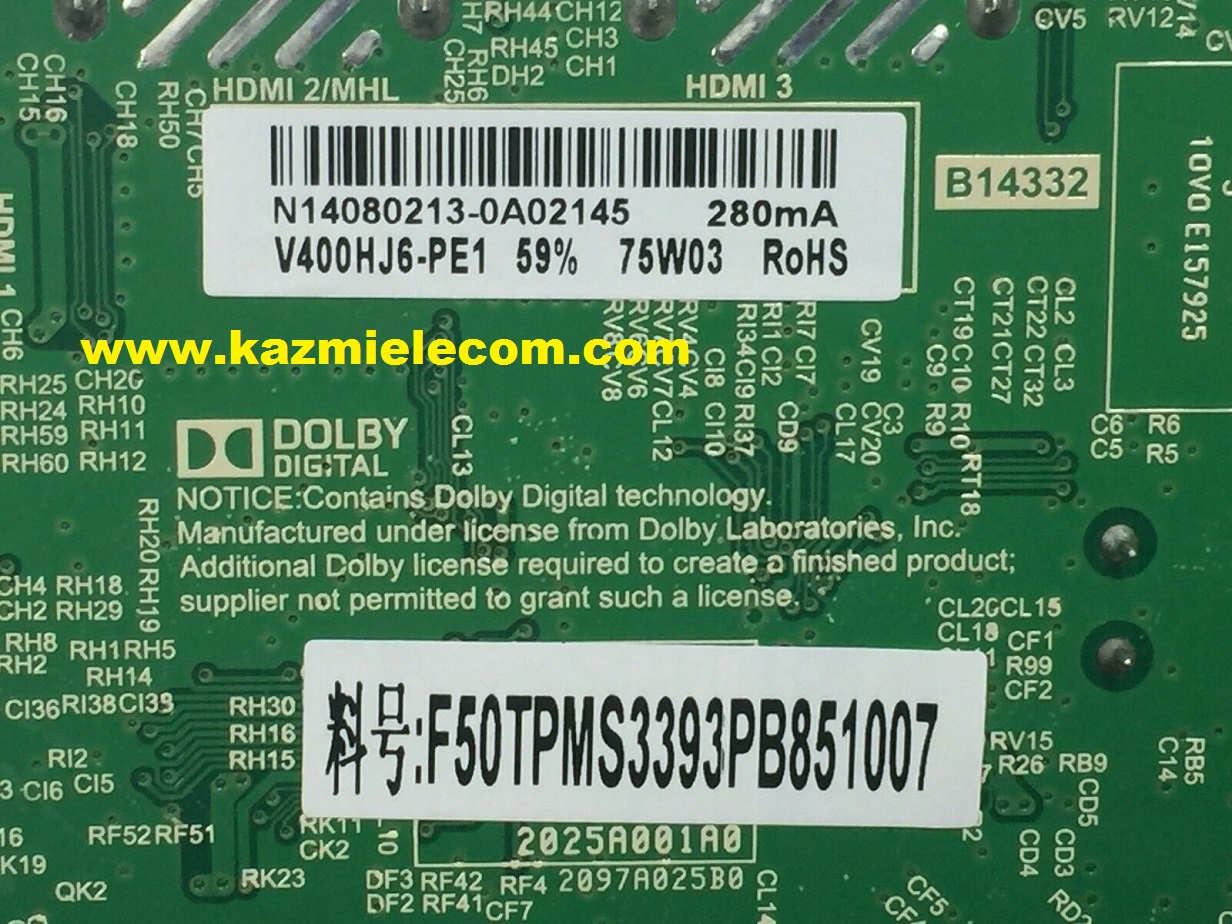

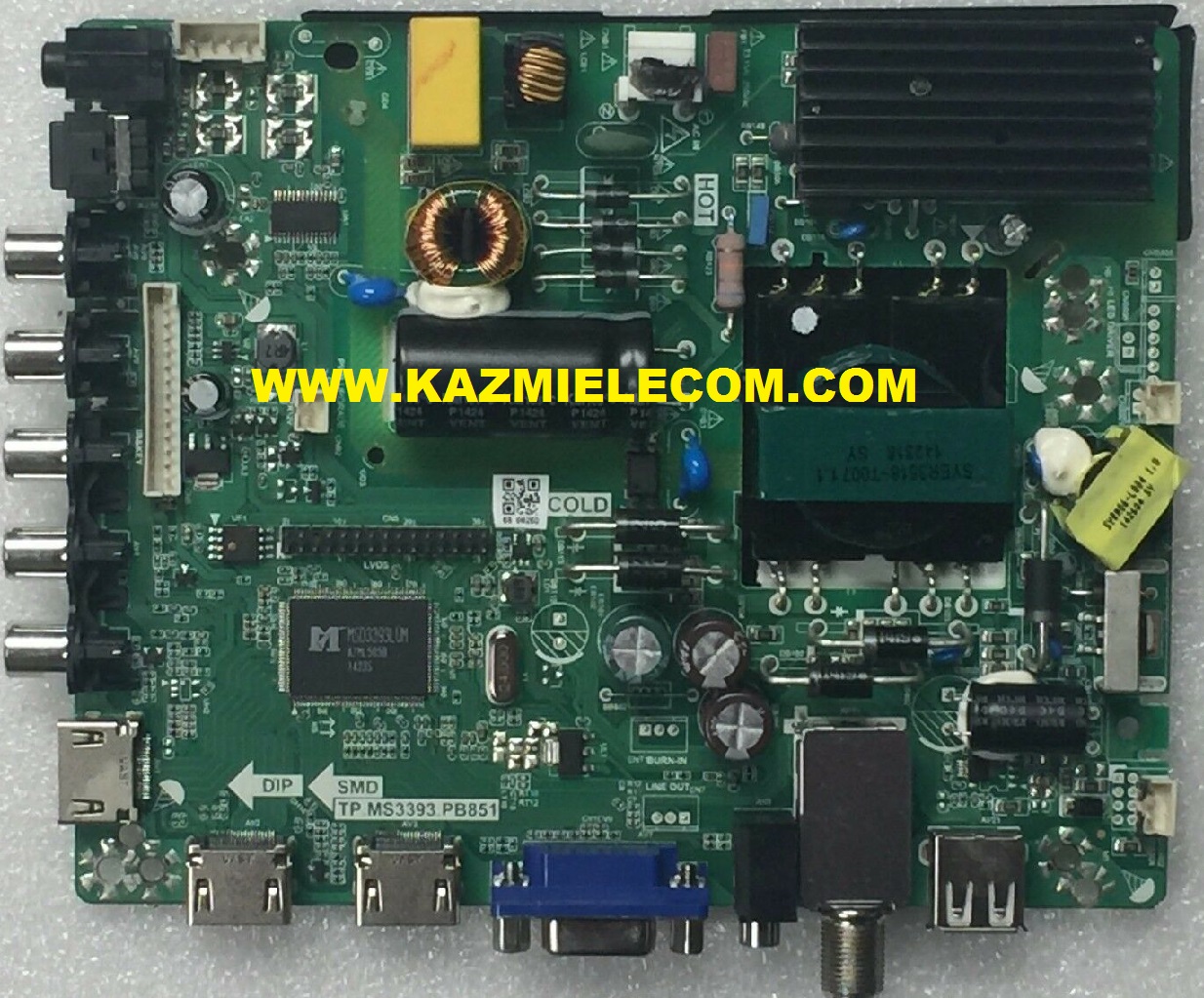

TP.MS3393.PB851 LED TV Board

TP.MS3393.PB851 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. TP_MS3393_PB851 is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. The firmware files are given below for the technician’s support.

TP.MS3393.PB851 board has multiple input ports as per the user’s requirement. This board has Three HDMI input ports, a USB input interface, a VGA interface, Composite input ports, SPDIF, a Headphone, and a cable TV tuner.

Tp.ms3393.Pb851

General Specifications:

Brand/Mark: China Universal

Model: TP-MS3393-PB851

Main Chip: MSD3393

TV System: PAL\SECAM\NTSC PLAYBACK

Product: LED TV

Input Voltage: 220V AC

Backlight Volt: 45V

MAX Backlight Watt: 65-75w

Backlight Current: 280-320mA

Resolution: up to 1920×1080

Flash size: 4 MB

AUDIO:

Tuner:

Tp.ms3393.Pb851

Service Menu:

Source 2-5-8-0

Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.

How to Download Firmware Files:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

TP.MS3393.PB851 firmware for free download:
