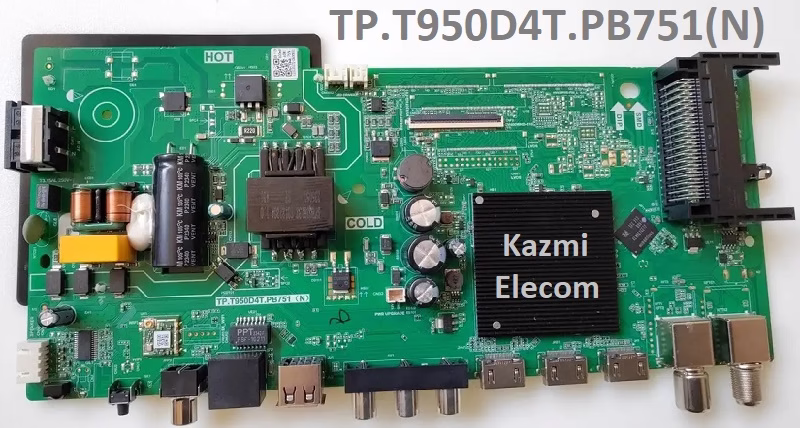

TP.T950D4T.PB751 Smart Android Board
TP.T950D4T.PB751 is an Intelligent, smart Android network driver LED TV motherboard with a Full High Definition 1920×1080 resolution. TP-T950D4T-PB751 is dedicated to 60 Hz screens. It is a combo board. It has the full features of input interface connectivity. It has multiple input connectivity ports like triple HDMI, Mini AV, Coaxial, headphones, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. TP-T950D4T-PB751 has a digital and analog TV tuner built into the main board, which can receive analogand digital television signals. It has a special connectivity feature of Bluetooth 5.1. This board has an inbuilt WiFi module and LAN interface. The TP.T950D4T.PB751 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: TP.T950D4T.PB751 (N)
Chipset: T950
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 13
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1 GB DDR3
ROM: 8 GB EMMC

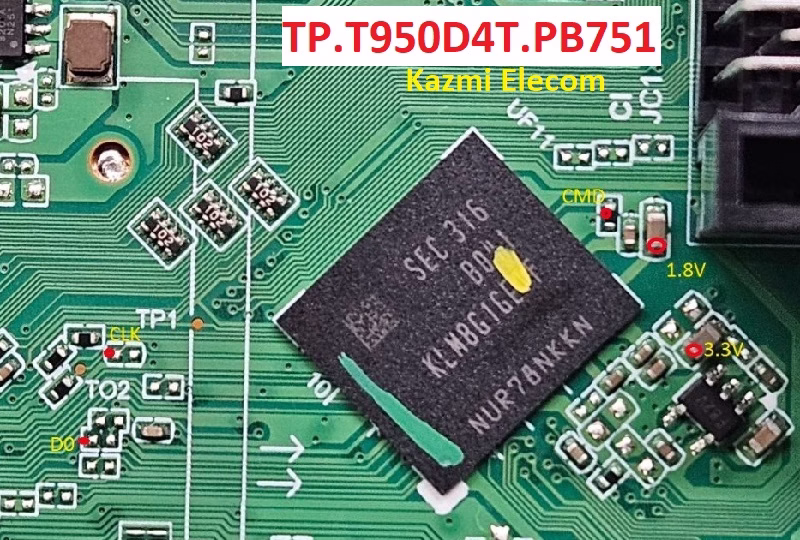

EMMC: KLM8G1GETF
Backlight: 35-110V 600mA 65W1
USB Input: 02
HDMI Input: 03
Scart: Yes (Optional)
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: 5.1
AV Input: Yes
Sound Output: 20W DTS-HD
RF TUNER: Dual
Video System: PAL/SECAM/NTSC
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
TP.T950D4T.PB751 Firmware for free download:
