TP.U63.PB772 Software Free Download

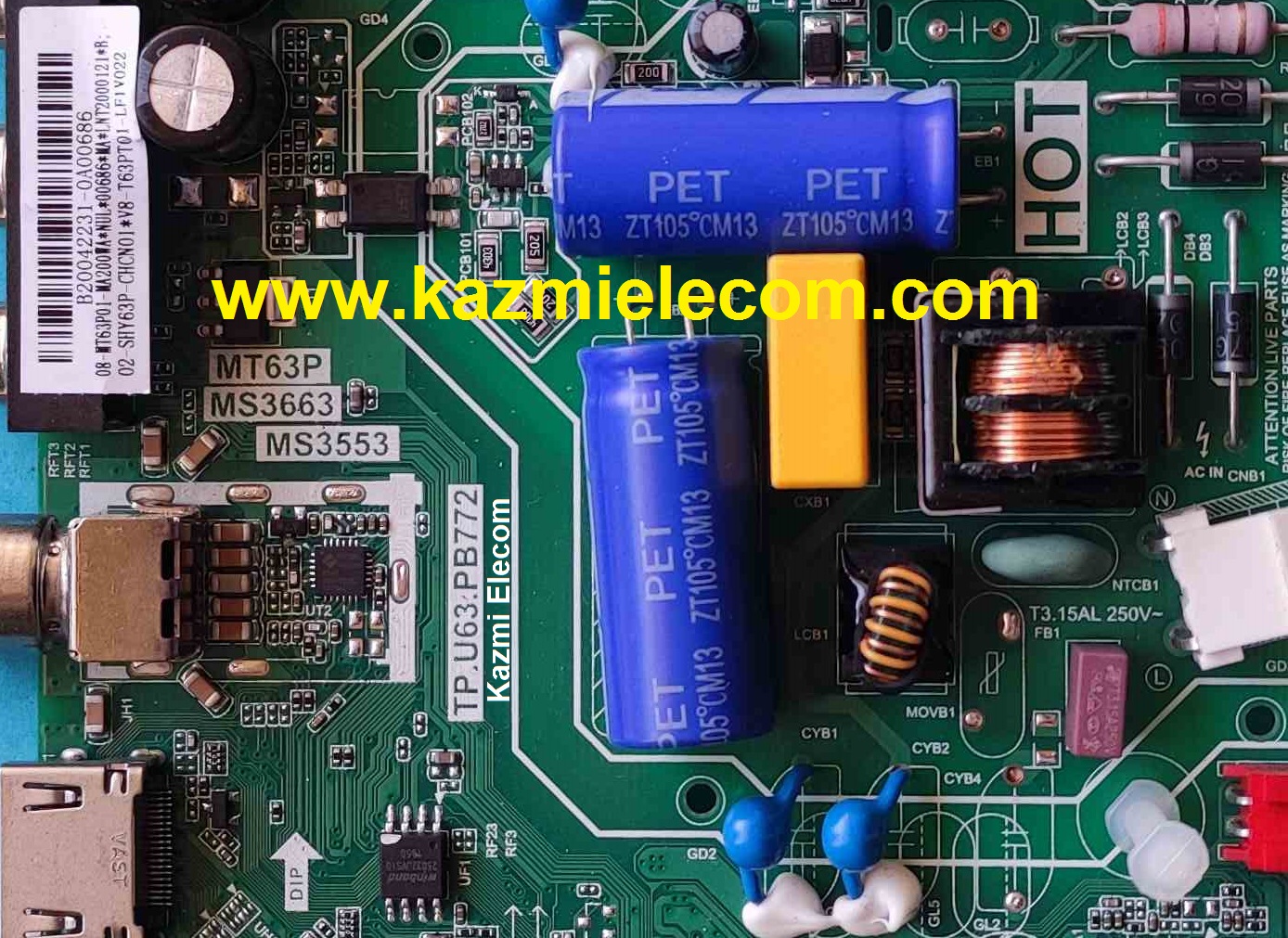

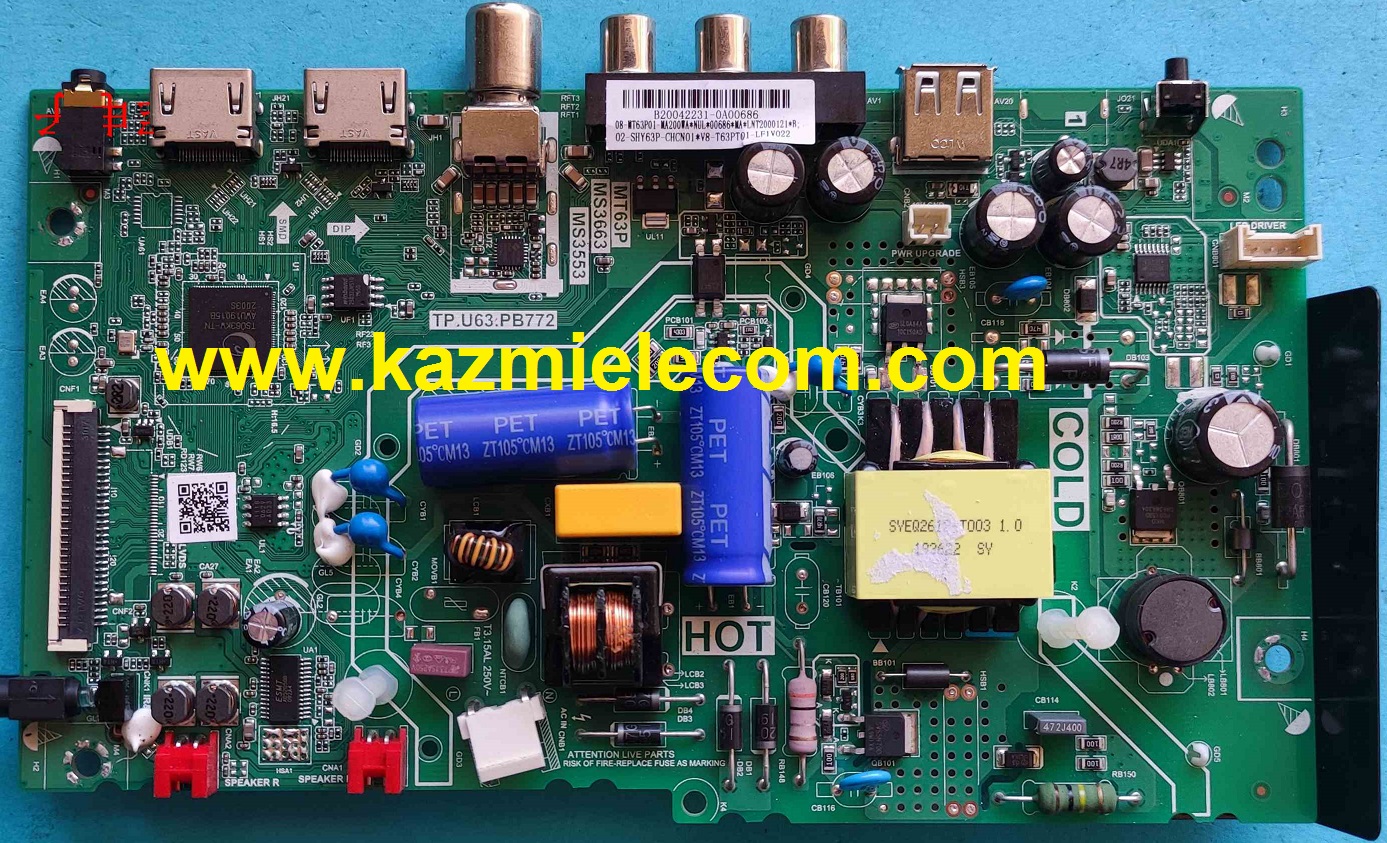

TP.U63.PB772 LED TV Board

TP.U63.PB772 is a combo HD&FHD DVB LED TV non-smart Board. It has a supported FHD resolution of 1920×1080 and a Refresh Rate is 50/60 hertz with a smooth motion rate of 200 SMR. It has multiple HDMI ports to connect a set-top box, Blu-ray players, and gaming console, and also have more than one USB port to connect hard drives and other USB devices and play multimedia as well. It has a Dolby Sound system that Supports 16 Watts sound output and HDR Display viewing. TP-U63-PB772 can support multiple LCD/LED panels. TP_U63_PB772 firmware files are given below for free of cost download to support technicians.

General Features and Specifications:

Brand/Mark: China Universal

Model: TP-U63.PB772

Chasis: MT63P,MS3663,MS3553

Main Chipset: TS063KW-TN

Product: LED TV

Resolution: 1920×1080

Panel: 32 to 40 Inch

Backlight: 35-57V 25W

HDMI Ports: 2

Component: Yes

Tuner: 1

USB Ports: 1

VGA Port: No

Scart: No

DTS Studio Sound™ Yes

Analog Audio Out AV Out

Digital Audio Out

SPI Flash: 4 MB

Service Code: 8899

Firmware Type: USB Boot, Backup Dump

Firmware Name: VST53_4MB_M.bin

Firmware Version: V8-T53VT01-LF1V074

Note The following given firmware is USB bootable and dumps backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download TP.U63.PB772 firmware files:

Download the following given firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here

TP.U63.PB772 firmware files free download:

• TP-U63-PB772_1366x768_TCL_USB
• TP-U63-PB772_1366x768_TCL_DUMP
