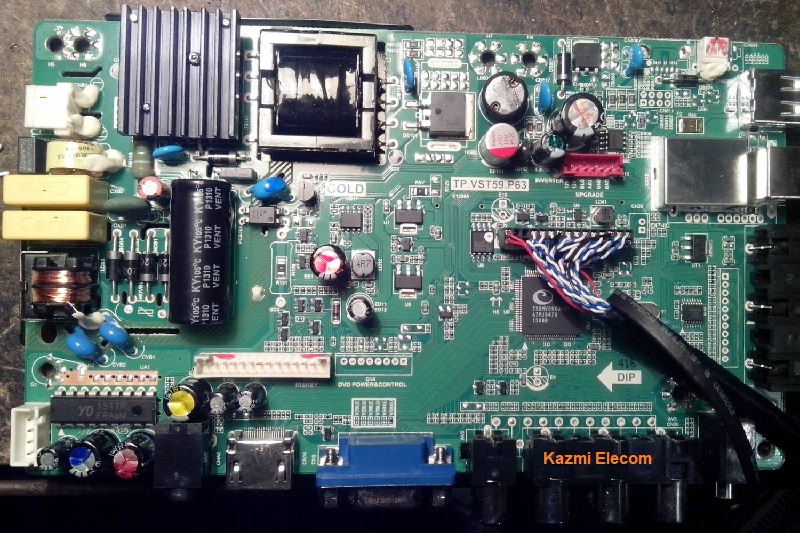

TP.VST59.P63 LED TV Board
TP.VST59.P63 is a universal led tv driver board that is suitable for 32-inch panels and others. TP_VST59_P63 is three in one board that is backlight inverter, main power supply, and logic board are builtin into a single piece of PCB which is why it is called a combo board. Its USB interface can play Multimedia and also we can load the program through it.
General Specifications:
Brand/Mark: China Universal
Model: TP.VST59.P63

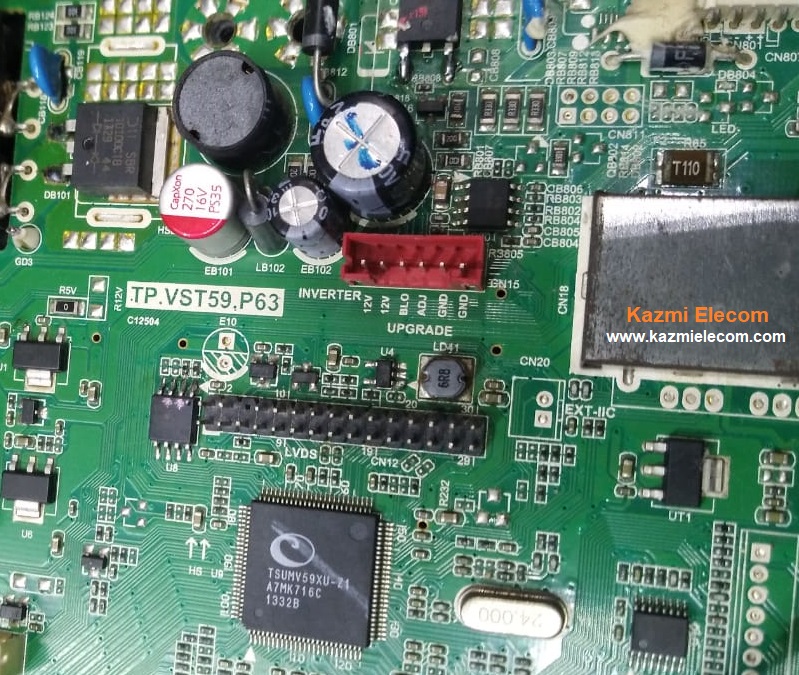

Main Chipset: TSUMV59XU-Z1
Product: LED TV
Backlight: 45 to 65v 350mA 35w
Panel Voltage: 5v, 12v
Board Power Input: 220v AC
Resolution: Up to 1920×1080
Screen Supported: 26 to 46 inch
Service Code: Menu+1147
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59.P63 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59.P63_1366x768_ASANO_Backup Dump | Download |
| 2 | TP.VST59.P63_1366x768_Backup Dump | Download |
| 3 | TP.VST59.P63_1366x768_Samsung_Backup Dump | Download |
| 4 | TP.VST59.P63_1920x1080_Backup Dump | Download |
| 5 | TP.VST59.P63_AKAI LEA-24A08G_Backup Dump | Download |
| 6 | TP.VST59.P63_AKARI LE-24M59_Backup Dump | Download |
| 7 | TP.VST59.P63_ATA LE-22M1_Backup Dump | Download |
| 8 | TP.VST59.P63_Mitashi 24-Inch_Backup Dump | Download |
| 9 | TP.VST59.P63_Nobel L24G3_Backup Dump | Download |
| 10 | TP.VST59.P63_Rolsen RL-19E1301GU_Backup Dump | Download |
| 11 | TP.VST59.P63_Saturn LED-22H10B_Backup Dump | Download |
