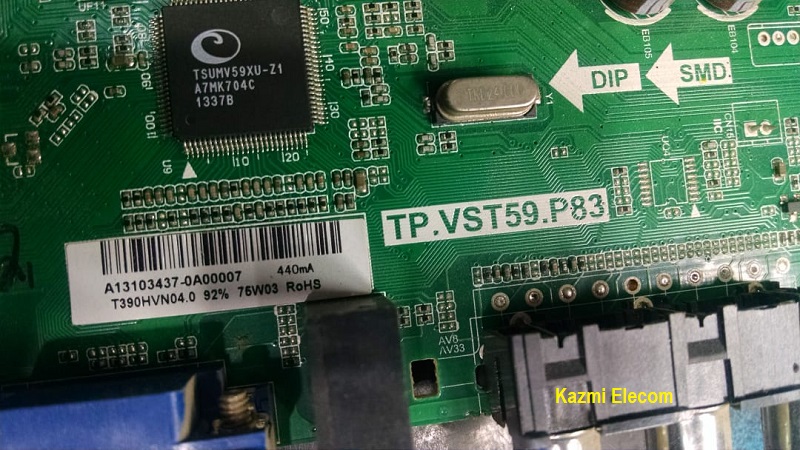

TP.VST59.P83 LED TV Board
TP.VST59.P83 is a universal led tv combo controller board that is suitable for 32-inch panels and others. TP_VST59_P83 is three in one board that is backlight inverter, main power supply, and logic board are builtin into a single PCB which is why it is called a combo board. TP-VST59-P83 support 1920×1080 resolution. Its USB interface can be used for multimedia playback and for software updates as well.
General Specifications:
Brand/Mark: China Universal
Model: TP.VST59.P83
Main Chipset: TSUMV59XUS-Z1
Product: LED TV
Backlight: 45 to 65v 4400mA 75w
Panel Voltage: 12v
Board Power Input: 220v AC
Resolution: Up to 1920×1080
Screen Supported: 26 to 46 inch
Service Code: Menu+1147 OR Menu+8893
Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59.P83 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59.P83_1366x768_China Remote_Backup Dump | Download |
| 2 | TP.VST59.P83_1366x768_General_USB | Download |
| 3 | TP.VST59.P83_1366x768_Sony_Backup Dump | Download |
| 4 | TP.VST59.P83_1366x768_Sony_Mirror_Backup Dump | Download |
| 5 | TP.VST59.P83_1366x768_Sony_Normal_Backup Dump | Download |
| 6 | TP.VST59.P83_1920x1080_General_USB | Download |
| 7 | TP.VST59.P83_1920x1080_NIKAI_Backup Dump | Download |
| 8 | TP.VST59.P83_1920x1080_Samsung_Backup Dump | Download |
| 9 | TP.VST59.P83_1920x1080_Samsung_Mirror_Backup Dump | Download |
| 10 | TP.VST59.P83_1920x1080_Samsung_Normal_Backup Dump | Download |
| 11 | TP.VST59.P83_1920x1080_Samsung_USB | Download |
| 12 | TP.VST59.P83_1920x1080_Sony_Backup Dump | Download |
| 13 | TP.VST59.P83_1920x1080_Sony_Mirror_Backup Dump | Download |
| 14 | TP.VST59.P83_AKAI LEA-28A08W_Backup Dump | Download |
| 15 | TP.VST59.P83_AKAI LEA-39A08G_Backup Dump | Download |
| 16 | TP.VST59.P83_AKIRA 32 INCH_Backup Dump | Download |
| 17 | TP.VST59.P83_Changhong RUBA LED39C3000_Backup Dump | Download |
| 18 | TP.VST59.P83_DETEC LED32DM_Backup Dump | Download |
| 19 | TP.VST59.P83_ERISSON 39LEN52_Backup Dump | Download |
| 20 | TP.VST59.P83_FUSION FLTV-32L41B_Backup Dump | Download |
| 21 | TP.VST59.P83_FUSION FLTV-39LF28B_Backup Dump | Download |
| 22 | TP.VST59.P83_Haier 32EU3000_Backup Dump | Download |
| 23 | TP.VST59.P83_Huike S40PA3000 S40PA3900_Backup Dump | Download |
| 24 | TP.VST59.P83_HYUNDAI H3960AD2UE_Backup Dump | Download |
| 25 | TP.VST59.P83_Lehua LED32C560_Backup Dump | Download |
| 26 | TP.VST59.P83_LLOYAD 32 NHD_Backup Dump | Download |
| 27 | TP.VST59.P83_MITASHI MIDE032V11_Backup Dump | Download |
| 28 | TP.VST59.P83_MYSTERY MTV-4023LW_Backup Dump | Download |
| 29 | TP.VST59.P83_NIKAI 40 INCH_Backup Dump | Download |
| 30 | TP.VST59.P83_OPENSTAR 32_Backup Dump | Download |
| 31 | TP.VST59.P83_Panda LE32D26_Backup Dump | Download |
| 32 | TP.VST59.P83_Panda LE32J28_Backup Dump | Download |
| 33 | TP.VST59.P83_Panda LE39M28_Backup Dump | Download |
| 34 | TP.VST59.P83_Pioneer LED-39B500_Backup Dump | Download |
| 35 | TP.VST59.P83_Rubin RB-39D3F_Backup Dump | Download |
| 36 | TP.VST59.P83_SANSUI UA400WF_Backup Dump | Download |
| 37 | TP.VST59.P83_Shanghai HDLED42A6_Backup Dump | Download |
| 38 | TP.VST59.P83_Sony 40W700_Backup Dump | Download |
| 39 | TP.VST59.P83_Tsinghua Tongfang LE-42TL1200_Backup Dump | Download |
| 40 | TP.VST59.P83_WESTON LED3203_Backup Dump | Download |
| 41 | TP.VST59.P83_Xinfei LED-32Q5_Backup Dump | Download |
