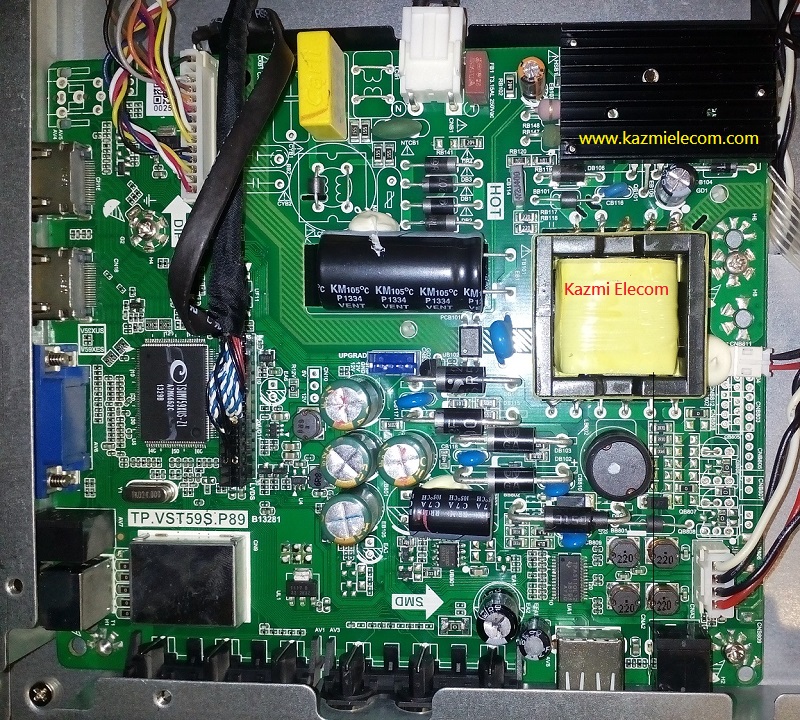

TP.VST59S.P89
TP.VST59S.P89 is a universal led tv driver board that is suitable for 32-inch panels and others. TP_VST59S_P89 is three in one board that is backlight inverter, main power supply, and logic board are builtin into a single PCB which is why it is called a combo board.
General Specifications:
Brand/Mark: China Universal
Model: TP.VST59S.P89
Main Chipset: TSUMV59XUS-Z1
Product: LED TV
Backlight: 45 to 65v 350mA 35w
Panel Voltage: 5v, 12v
Board Power Input: 220v AC
Resolution: Up to 1920×1080
Screen Supported: 26 to 46 inch
Service Code: Menu+1147
Note: The following firmware is a USB Boot/dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.VST59S.P89 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.VST59S.P89_General_1366x768_English_SiR620D_USB | Download |
| 2 | TP.VST59S.P89_General_1920x1080_English_SiR620D_USB | Download |
| 3 | TP.VST59S.P89_Panel_100HZ_English_SiR620D_USB | Download |
| 4 | TP.VST59S.P89_Panel_1280x720_English_SiR620D_USB | Download |
| 5 | TP.VST59S.P89_Panel_1280x768_English_SiR620D_USB | Download |
| 6 | TP.VST59S.P89_Panel_1366x768_English_SiR620D_USB | Download |
| 7 | TP.VST59S.P89_Panel_1920x1080_English_SiR620D_USB | Download |
| 8 | TP.VST59S.P89_General_1366x768_Mirror_USB | Download |
| 9 | TP.VST59S.P89_General_1920x1080_Mirror_USB | Download |
| 10 | TP.VST59S.P89_General_1920x1200_Mirror_USB | Download |
| 11 | TP.VST59S.P89_Panel_100HZ_Mirror_USB | Download |
| 12 | TP.VST59S.P89_Panel_1280x720_Mirror_USB | Download |
| 13 | TP.VST59S.P89_Panel_1280x768_Mirror_USB | Download |
| 14 | TP.VST59S.P89_Panel_1366x768_Mirror_USB | Download |
| 15 | TP.VST59S.P89_Panel_1920x1080_Mirror_USB | Download |
| 16 | TP.VST59S.P89_General_1366x768_MM_HD_FB_USB | Download |
| 17 | TP.VST59S.P89_General_1920x1080_MM_HD_FB_USB | Download |
| 18 | TP.VST59S.P89_General_1920x1200_MM_HD_FB_USB | Download |
| 19 | TP.VST59S.P89_Panel_100HZ_MM_HD_FB_USB | Download |
| 20 | TP.VST59S.P89_Panel_1280x720_MM_HD_FB_USB | Download |
| 21 | TP.VST59S.P89_Panel_1280x768_MM_HD_FB_USB | Download |
| 22 | TP.VST59S.P89_Panel_1366x768_MM_HD_FB_USB | Download |
| 23 | TP.VST59S.P89_Panel_1920x1080_MM_HD_FB_USB | Download |
| 24 | TP.VST59S.P89_General_1366x768_Normal_SiR620D_USB | Download |
| 25 | TP.VST59S.P89_General_1920x1080_Normal_SiR620D_USB | Download |
| 26 | TP.VST59S.P89_General_1920x1200_Normal_SiR620D_USB | Download |
| 27 | TP.VST59S.P89_Panel_100HZ_Normal_SiR620D_USB | Download |
| 28 | TP.VST59S.P89_Panel_1280x720_Normal_SiR620D_USB | Download |
| 29 | TP.VST59S.P89_Panel_1280x768_Normal_SiR620D_USB | Download |
| 30 | TP.VST59S.P89_Panel_1366x768_Normal_SiR620D_USB | Download |
| 31 | TP.VST59S.P89_Panel_1920x1080_Normal_SiR620D_USB | Download |
| 32 | TP.VST59S.P89_Nobel-LED | Download |
| 33 | TP.VST59S.P89_Panda LE32D36H | Download |
| 34 | TP.VST59S.P89_Prima-28 | Download |
| 35 | TP.VST59S.P89_Rolsen RL-32D1307 | Download |
| 36 | TP.VST59S.P89_RUBIN RB-28D8 | Download |
| 37 | TP.VST59S.P89_Rubin RB-32D3U | Download |
