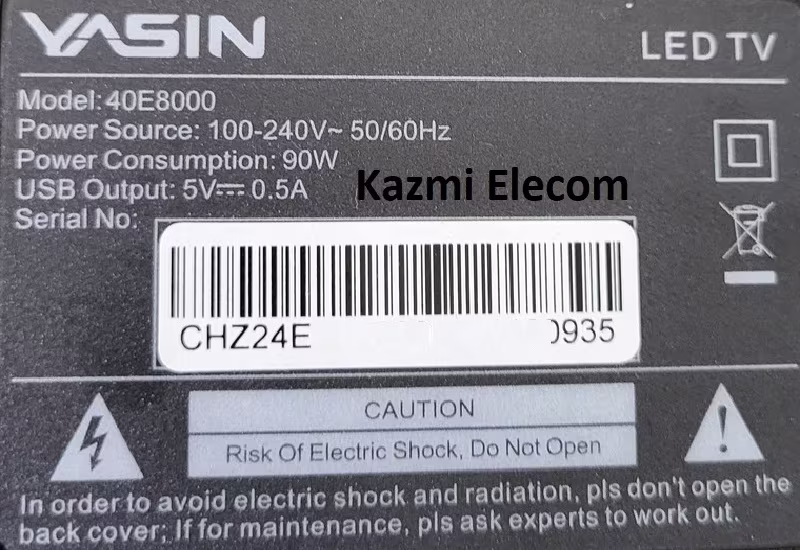

Yasin 40E8000 LED TV
Yasin 40E8000 is an Intelligent, smart Android LED TV with a High-Definition 720P 1366×768 resolution. Yasin 40E8000 screen refresh rate frequency is 60 Hz. It is a combo board. It has the full features of input interface connectivity. It has multiple input connectivity ports, such as double HDMI, Mini AV, Coaxial (SPDIF), headphones, Optical interface, USB port, Scart interface, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. Yasin 40E8000 has a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/NTSC). It has a special Bluetooth 5.1 connectivity feature. This board has an inbuilt WiFi module and LAN interface. The Yasin 40E8000 Firmware file is given below for the Technician’s support.
General Specifications:
Brand/Make: YASIN
Model: 40E8000
Panel: QV400WHB-N10
Mainboard: NTT921D.7G232 LA.017.22601000.0013 VER00.04
Main Chipset: Amlogic T921D-N5
Resolution Supported: 2K
CPU: A53*4
GPU: IMG7800
OS: Android 9
Ram: 512Mb
Rom: 4 Gb
Audio Output Power: 2X10 W (8Ω)
Backlight: 35-110V 650 mA
Backlight Power: 75W
Service Code:
Firmware File: allupgrade_aml921_4G_sos.bin
Firmware Type: EMMC Backup Dump
Note: The following firmware is an EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first. Always keep a backup before writing the flash.
Yasin 40E8000 Firmware file for Free Download:
