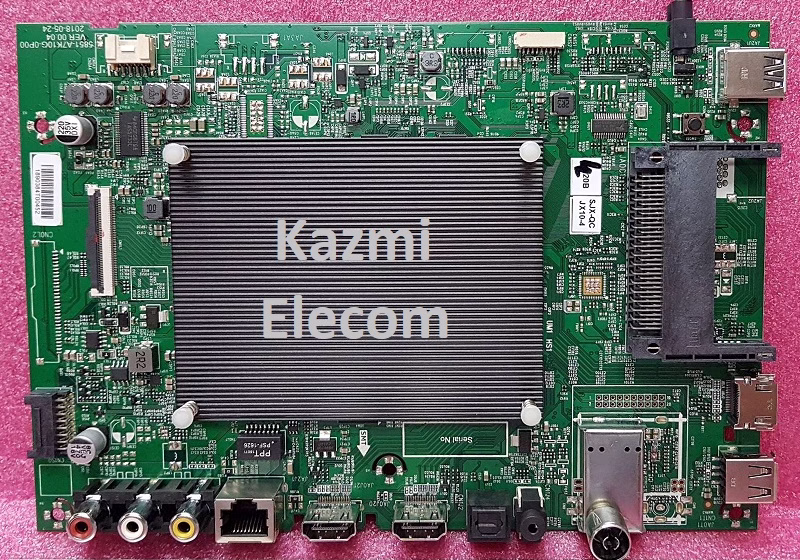

5851-A7K10G-0P00 Smart Android Board
5851-A7K10G-0P00 is smart android plateform LED TV Board. It supports a maximum screen resolution of 1920×1080 Full High Definition 1080 Pixels. This board is a non-combo smart board means it is a network board without a three-in-one option. The main power module supply and the backlight inverter module will be required separately to complete the LED TV setup. It has the smart Android platform version 8.0 and updated with 9.0 as well.
5851-A7K10G-0P00 smart android motherboard has a dual TV signal reception system with an Analog tuner (PAL, SECAM, NTSC) and Digital TV tuner (DVB-T / T2, DVB-C). This board has multiple input and output user connectivity interfaces such as Dual USB, Triple HDMI inputs, SPDIF output, CI+ interface, RCA component Input, and RJ45 Ethernet connectivity interface for wired internet connectivity.
5851-A7K10G-0P00 General Information:
Board Model: 5851-A7K10G-0P00
Main Chipset:
CPU: Quad-Core
GPU: Dual-Core
Smart platform: Android 8, 9 with Full voice control
Resolution: 1920×1080
Audio Power: 2x6W (12 watts)
Backlight Current: 380-620 mA
Backlight Voltage Range: 40-114 Volt
USB Ports: 2
HDMI Ports: 3
CI: Yes
Component: Yes
RJ45: Yes
Analog Tuner: PAL, SECAM, NTSC
Digital Tuner: DVB-T / T2, DVB-C
Wifi: Yes
Mira-Cast:
Memory (RAM): 1GB DRAM
Storage (ROM): 8 GB EMMC Flash
EMMC: THGBMFG6C1LBAIL
Power Rating: 110V~240V 50/60Hz
Power Consumption: 65Watt
Firmware Name:
Firmware Type: USB Bootable and EMMC Backup Dump
Product Users: IRIS, SKYWORTH
Compatible Versions:
- IRIS 43E6A
- SKYWORTH 43E6
- SKYWORTH 40E6
- SKYWORTH 32E6
5851-A7K10G-0P00 Technical Specifications:
- Resolution 1920×1080 Full HD
- HD support HD
- LED backlight DLEDD
- Response time 8 ms
- Display scale 16:09
- Stereo sound Yes
- Matrix type LED
- Refresh rate 60 Hz
- Processor frame Quad core
- GPU Dual core
- OS version Smart
- RAM (DRAM) 1GB
- ROM (Flash) 8GB
- WIFI 2T2R
- HDMI 2.0 (HDCP 2.2) 3
- HDMI CEC (T-link) Full
- Caption (Subtitle) Yes
- USB HID support Yes
- USB channel list clone Yes
- USB 2.0 2
- Teletext there is
- ATV PAL, SECAM, NTSC
- DTV DVB-T / T2, DVB-C
- Sound power 6w+6w
- Acoustic system Buffer speakers
- DOLBY DIGITAL there is
- Supported formats MP3, WMA, MPEG4, MKV, JPEG
- Social Applications Yes
- Web browser Yes
- Processor Quad Core
- WiFi sharing Yes
- Voice Control Yes
How to Write 5851-A7K10G-0P00 EMMC Backup:
- Download the given 5851.A7K10G.0P00 EMMC backup shared in this post below
- Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
- Jtag the mainboard with the Programming Tool
- Write the EMMC data
- Done.
Note: The following 5851.A7K10G.0P00 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
