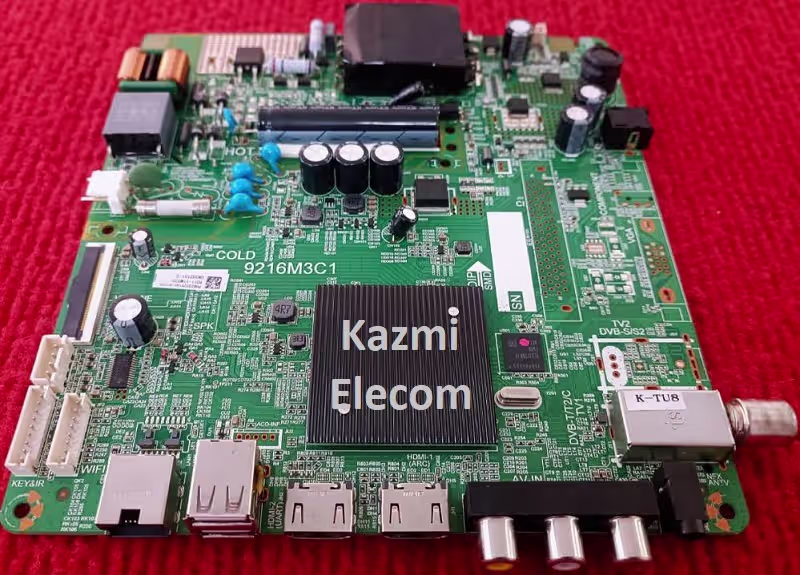

9216M3C1 Smart Android Board
9216M3C1 is an Intelligent, smart Android network driver LED TV motherboard with a Full High-Definition 1920×1080 resolution. 9216M3C1 is dedicated to 60 Hz screens. It is a combo board. It features full connectivity for the input interface. It has multiple input connectivity ports, such as dual HDMI, Audio Video, Coaxial, headphones, Scart Interface, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. 9216M3C1 is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/NTSC). It has a special Bluetooth 5.1 connectivity feature. This board has an inbuilt WiFi module and LAN interface. The 9216M3C1 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board

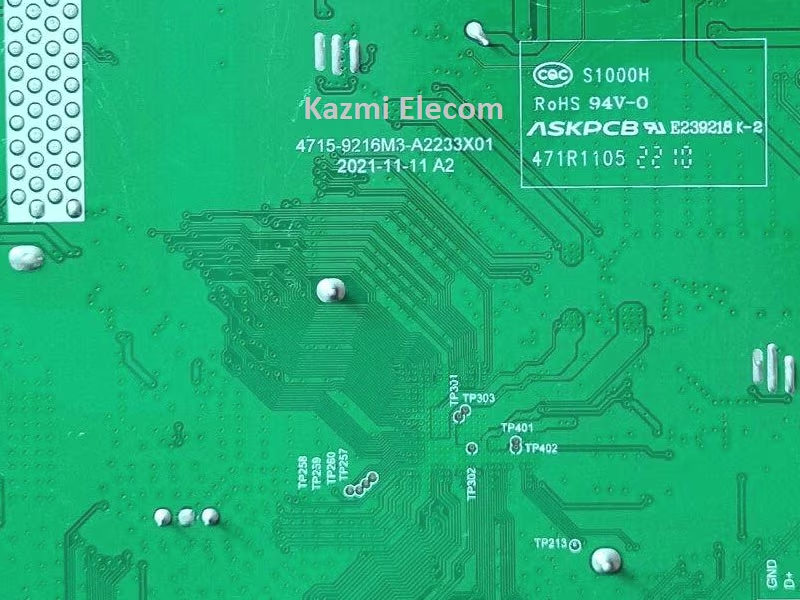

Model: 9216M3C1 4715-9216M3-A2233X01 2021-11-11 A2
Chipset: MT9216
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 11
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1 GB DDR3
ROM: 8 GB EMMC
Backlight: 60-72V 300mA,
USB Input: 02
HDMI Input: 02
Scart: (Optional)
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: 5.1
AV Input: Yes
Sound Output: 20W DTS-HD
RF TUNER: Yes
Video System: PAL/SECAM/NTSC
Product:
Power Input: 100- 240V 50/60 Hz
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading/installing, updating software/firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
9216M3C1 Firmware for free download:
