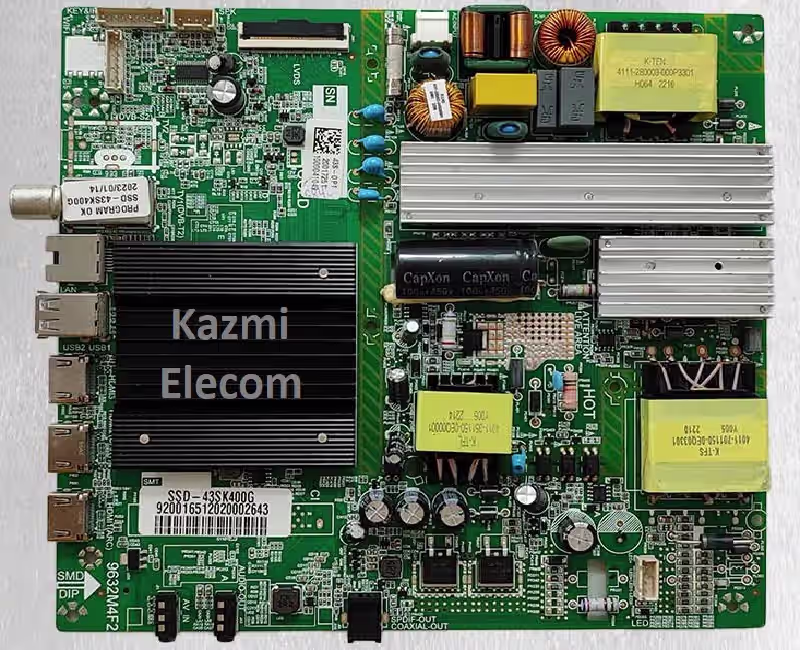

9632M4F2 Smart Android Board
9632M4F2 is a Full HD smart Android board with a supported screen resolution of 1920×1080. This board is a combo. This means that the power main input circuit module and LED backlight inverter driver controller circuit module are built into the main PCB. It has a single tuner input, one for analog cable TV and the second for Digital TV signals (DVB-T, DVB-T2, DVB-C, DVB-S/S2). 9632M4F2 board is built with Android platform version 9.0. It has 1.5 GB RAM and its storage capacity is 8 GB (ROM) Flash. It has a full-power Dolby Digital stereo sound system option with a dual speaker output interface of 16-watt output power.
9632M4F2 is a universal FHD smart board that can support 43-inch to 55-inch LED TV Screen Panels. It has multiple input-output connectivity interfaces per user requirements, such as triple HDMI input options for connecting Full HD devices like Blu-ray media players, Gaming Consoles, PlayStations, and STBs. Dual USB Input ports for playing media files (Video, Audio, Picture) and connecting external hard disk drives. AV input for connecting analog devices. It has a Local Area Network (RJ45) interface for connecting to a wired internet to get better data usage.
General Information:
Board Model: 9632M4F2
Main Chipset: MediaTek MT9632EAATDB
CPU: Quad-Core ARM Cortex-A53
GPU: Dual-Core G52MP2
Android Version: 9.0
Resolution: 1920×1080
Audio Power: 2x8W (16 watts 8 ohms)
Backlight Current: NA
Backlight Power: NA
USB Ports: 2
HDMI Ports: 3
CI: No
Component: Yes (Mini)
RJ45: Yes
Analog Tuner: PAL, DRY
Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S/S2
Wifi: Yes
Mira-Cast: Yes
SPDIF OUT: Yes
Memory (RAM): 1.5 GB

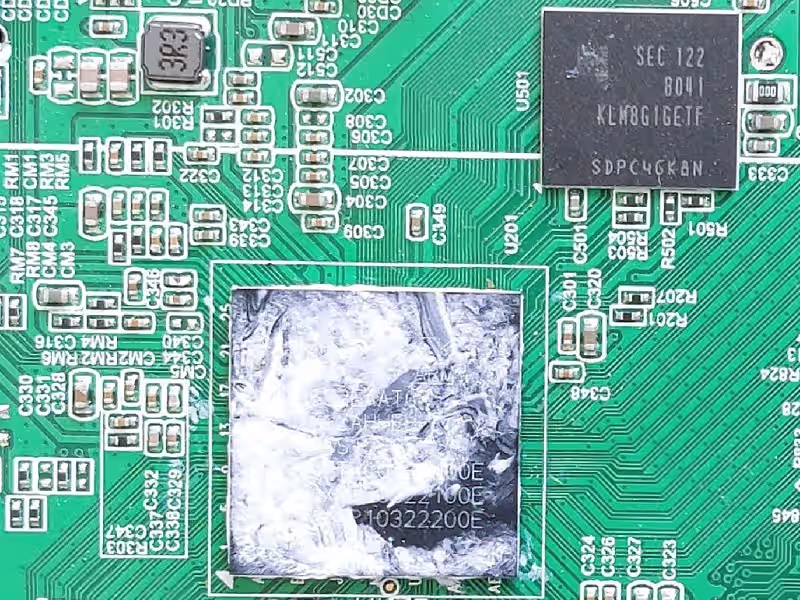

Storage (ROM): 8 GB EMMC Flash
Power Rating: 220V~240V 50Hz
Power Consumption: 150Watt
Firmware Name: 9632_DVBT_8G.bin
Firmware Type: NA
Product User: DAEWOO, SNOWA, X-VISION
Note: The following firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
9632M4F2 Firmware files for free download:
