B.TRTD5C Software Free Download

B.TRTD5C LCD TV Board

B.TRTD5C is a universal LCD driver Board that has HD resolution Supported up to 1366×768. B-TD5C is a non-combo board which means the main power supply and LCD backlight driver board are required separately while the ATV module and sound card are built in. The firmware files are given below for the technician’s support.

B.TRTD5C has multiple input interface ports for the user to connect several devices with this board. It has HDMI input for digital High-Definition device connectivity. VGA interface for Laptop and PC connectivity. Composite input interface for analog devices connectivity. Other ports are S-Video, Scart, and Headphone Out.

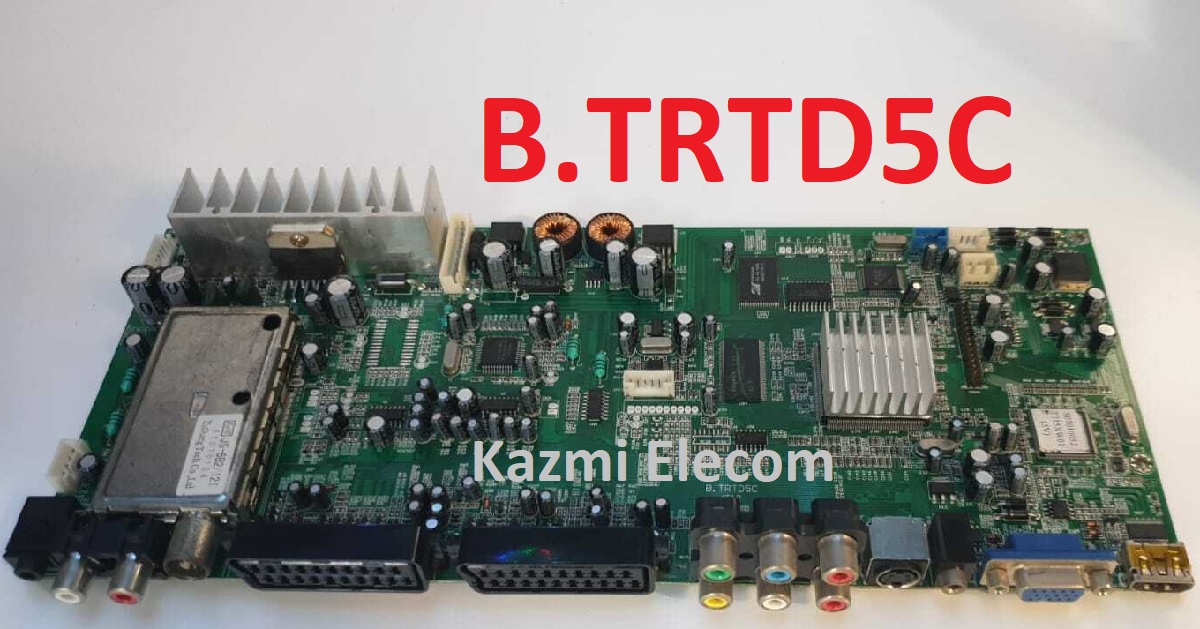

B.trtd5C

General Specifications:

Brand/Mark: China Universal

Model: B-TRTD5C 6326, B-TRTD5C 6512

Main Chip: T5BS4-9999, SVP-CX32

TV System: PAL\SECAM\NTSC PLAYBACK

Product: LCD TV

Input Voltage: 12V DC

MAX Backlight Watt: NA

Backlight Current: NA

Resolution: up to 1366×768

Flash size: MB

EEPROM: 24C64

AUDIO: TDA7265

Tuner: JS-6B2/121

Service Menu:

Source

Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

B.TRTD5C firmware for free download:
