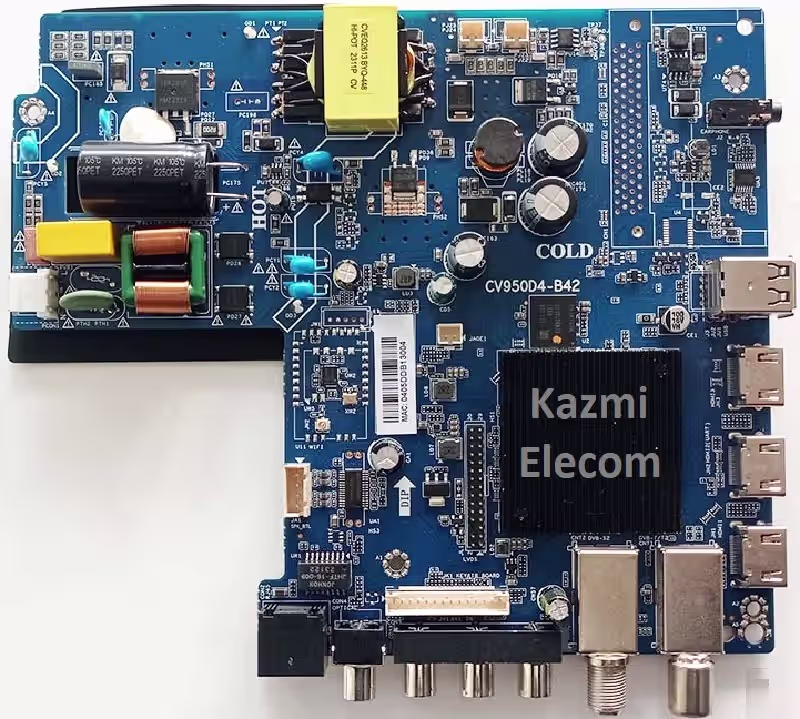

CV950D4-B42 Smart Android Board
CV950D4-B42 is a quad-core Wi-Fi three-in-one intelligent network board smart motherboard for LCD and LED TVs, featuring the latest version of Android 14 and a maximum of 1 GB RAM and 8 GB ROM, respectively. The CV950D4_B42 board can support screens ranging from 32 to 43 inches, with a maximum resolution of 1920×1080.
CV950D4-B42 has multiple connectivity ports such as triple HDMI input ports, a double USB interface, RCA input interface, LAN Ethernet connectivity (RJ45), Cable TV antenna interface, and headphone jack.
General Specifications:
Model: CV950D4-B42
Main Chipset: AMLOGIC T950D4-B8
Display Format: 1080P
O/S: Android 14
Ram: 1Gb
Rom: 8Gb EMMC Flash
CPU: Cortex-A53 Quad-Core 1.5GHz
GPU: Mali 450MP Penta-Core 750MHz
Audio Output Power: 2x8w (8 Ohm)
Backlight: 74-85V 570mA
Screen Panel Supported: 32-43″
Power Input: 100-240 V AC
Power Consumption: 75W
Standby Power: 0.5W
Firmware: aml_upgrade_package.img
Firmware Type: USB Bootable
Product User: REVOLUTION GALAXY
Note: The following firmware is a USB Bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading, installing, or updating software, firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
CV950D4-B42 Firmware for free download:
