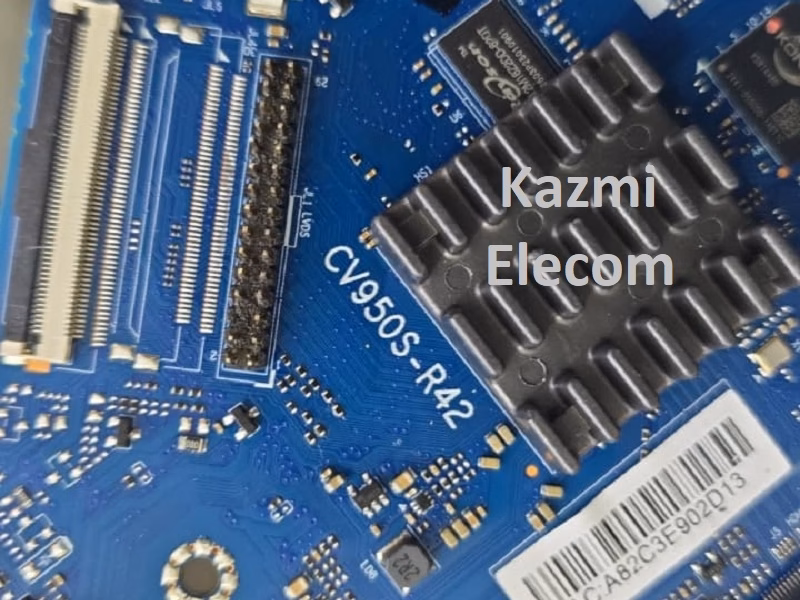

CV950S-R42 Smart Android Board
CV950S-R42 is a quad-core Wi-Fi three-in-one intelligent network board smart motherboard for LCD and LED TVs, featuring the latest version of Android 5.1 and a maximum of 1 GB RAM and 8 GB ROM, respectively. The CV950S_R42 board can support screens ranging from 32 to 43 inches, with a maximum resolution of 1920×1080.
CV950S-R42 has multiple connectivity ports such as triple HDMI input ports, a double USB interface, RCA input interface, LAN Ethernet connectivity (RJ45), Cable TV antenna interface, and headphone jack.
General Specifications:
Model: CV950S-R42
Display Format: 1080P
O/S: Android 14
Ram: 1Gb
Rom: 8Gb EMMC Flash
CPU: Cortex-A53 Quad-Core 1.5GHz
GPU: Mali 450MP Penta-Core 750MHz
Audio Output Power: 2x8w (8 Ohm)
Backlight: 350mA to 720mA
Screen Panel Supported: 32-43″
Power Input: 100-240 V AC
Power Consumption: 75W
Standby Power: 0.5W
Firmware: aml_upgrade_package.img
Firmware Type: USB Bootable
Product User: Magic
Note: The following firmware is a USB Bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading, installing, or updating software, firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
CV950S-R42 Firmware for free download:
