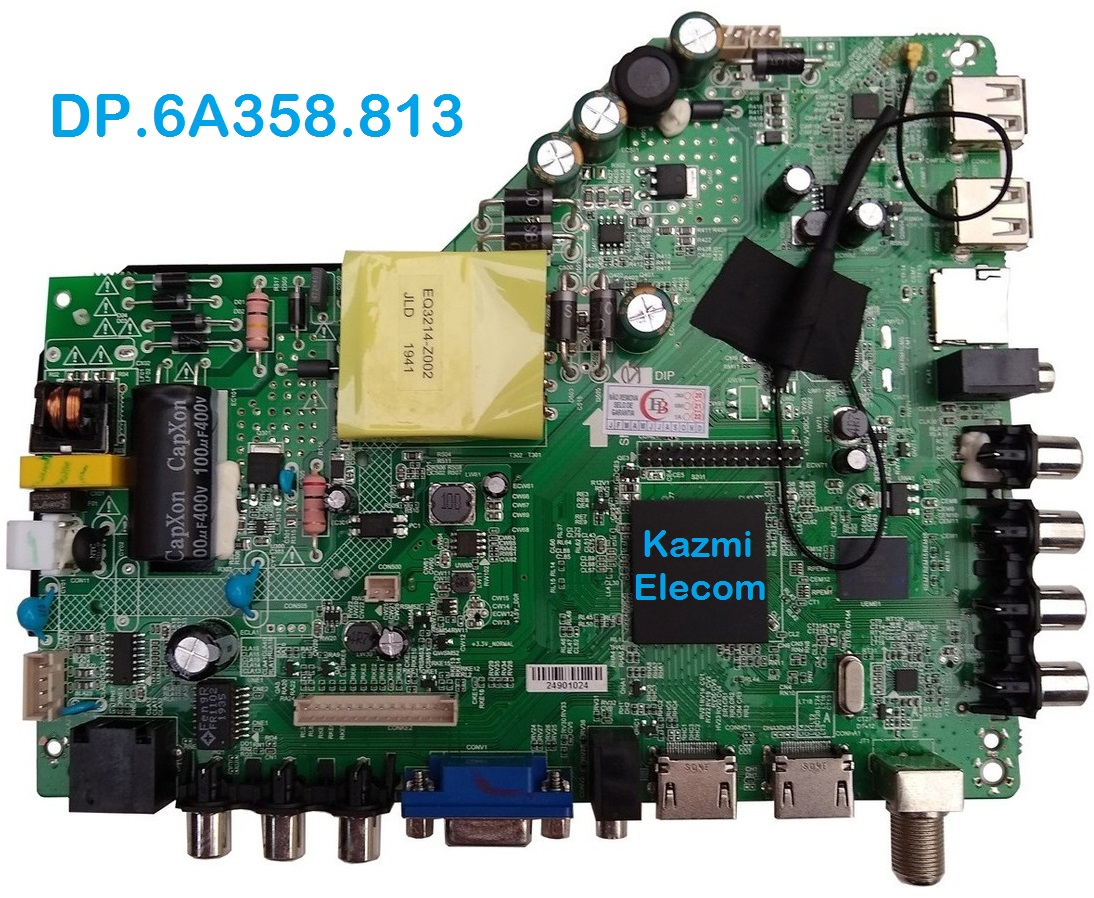

DP.6A358.813 Android Smart Board
DP.6A358.813 is a universal smart integrated board with an Android wifi network function. DP-6A358-813 is a Three-in-One Network Driver Wi-Fi board that can support up to 26 to 46-inch screens with a maximum resolution of 1920×1080 and can support HD resolution of 1366×768 as well. DP_6A358_813 can be equipped with various screens. DP.6A358.813 firmware files are given below for the technician’s support.
DP.6A358.813 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA, Card reader, and Earphones. TP.MS338-PC821 has a LAN/RJ45 Connector interface port also for the wired internet network.
General Specifications:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: DP.6A358.813
Main Chipset: DTMB: MSD6A358
OS: Android 8.0
CPU: A7*2
CPU Frequency: 1GHz
GPU: Mali400*2
GPU Frequency: 550MHz
Ram: 512MB/1GB
Rom: 4/8 Gb eMMC
Backlight: 38v to 70v 660mA 25w
Audio Output: 2x8w
Resolution: up-to 1920×1080 (26” to 46″)
Service Code: Source 2580
AC Input Requirement: 100 ~ 240V
Low power consumable mode: standby≤0.5W
Firmware Type: USB Upgrade
Firmware Name: 358_ISDB_8G.bin, 358_DVBT_8G.bin
Product: Blaupunkt LED TV, Noa Vision LED TV
Note: The following firmware is a USB Bootable File. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
DP.6A358.813 firmware for free download:
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | DP.6A358.813-1366x768-1G-8G-Blaupunkt.part1 | Download |
DP.6A358.813-1366x768-1G-8G-Blaupunkt.part2 | Download | |
2 | DP.6A358.813-1366x768-EMMC-8G-Blaupunkt.part1 | Download |
DP.6A358.813-1366x768-EMMC-8G-Blaupunkt.part2 | Download | |
3 | DP.6A358-1366x768-1G-8G-Noa Vision N32LHOS.part1 | Download |
DP.6A358-1366x768-1G-8G-Noa Vision N32LHOS.part2 | Download | |
4 | DP.6A358-1920x1080-1G-8G-Noa Vision N40LFOS.part1 | Download |
DP.6A358-1920x1080-1G-8G-Noa Vision N40LFOS.part2 | Download | |
5 | DP.6A358-1920x1080-1G-8G-Noa Vision N43LFOS.part1 | Download |
DP.6A358-1920x1080-1G-8G-Noa Vision N43LFOS.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
im download this firmware but not sapput
help plise thancks
tsanks
watch video tutorial how to download
tanks brother
mara minboard dp.6a358.813 boot hang not open mena usb se update try kia but not respond
help me brother thanks thanks
usb disk change kar k try karen
dp.6a358.818 aur dp.6a358.813 kya difference hae
6a358.818 is ka software mil hye ga 512/4gb
no difference
Hello there, I have samsung smart tv with DP.6A648.815 combo board that need firmware flash.
It doesn’t respond to any command, only the remote power button and power key is active. No menu or OSD is available.
Is there a way to go to hard reset
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Assalam o Alikum Sir, sir kiye yeh Software 512/4gb wale model mian install ho jaye ga?
No
i can’t flash this file into TV dp.6a358.813 1G_8G, please provide guidence….
current status?
i tried changing the flash drive, also use sd card but not working. also i try to rename the bin file MstarUpgrade.bin but no result. Thanks in advance
Assalam o Alikum Sir, Ap k pas Dp.6a358.813 512-4gb ka software hai to kindly upload kar dain. shukriya.
4b me is waqt to nai hy
Assalam o alaikum Bhai muje firmware chahiye but muje samj nahi aa rahi ye install ho sakti hai k nahi jo mere motherboard ka version hai wo DP.6A358.813 ye hai or is ka full model jo likha howa hai wo DP.6A358.813.G.1.PG(512+4G-E) ye hai please guide me and help me or jo is board main version installed hai wo android 4.4 hai or is ko upgrade karna hai thanks
w.salam dear Chinese boards upgrade nai hote
sir i need software to (dp.6A338.818) (1920*1080)
https://www.kazmielecom.tech/zp-vst6a338-pb818-software/
AAP ne board Ki Jo pic upper lagai Hai Kya yeh software us ka Hai kyon Kay us main to 512-4G-E Likha Hua hai
pictures reference k liey hen. board aksar 512 aur 1G both me hote hen
Sir main konsa software used karsakta hon model yeh Hai DP.6A358.813.B.1PG(512+4G-E)
Agar AAP Kay pass Hai to plz send karain main Android upgrade Karna chahta hoon upto 5.0
Dear yeh upgrade nai hota. apko latest android version k liey board change karna hoga
