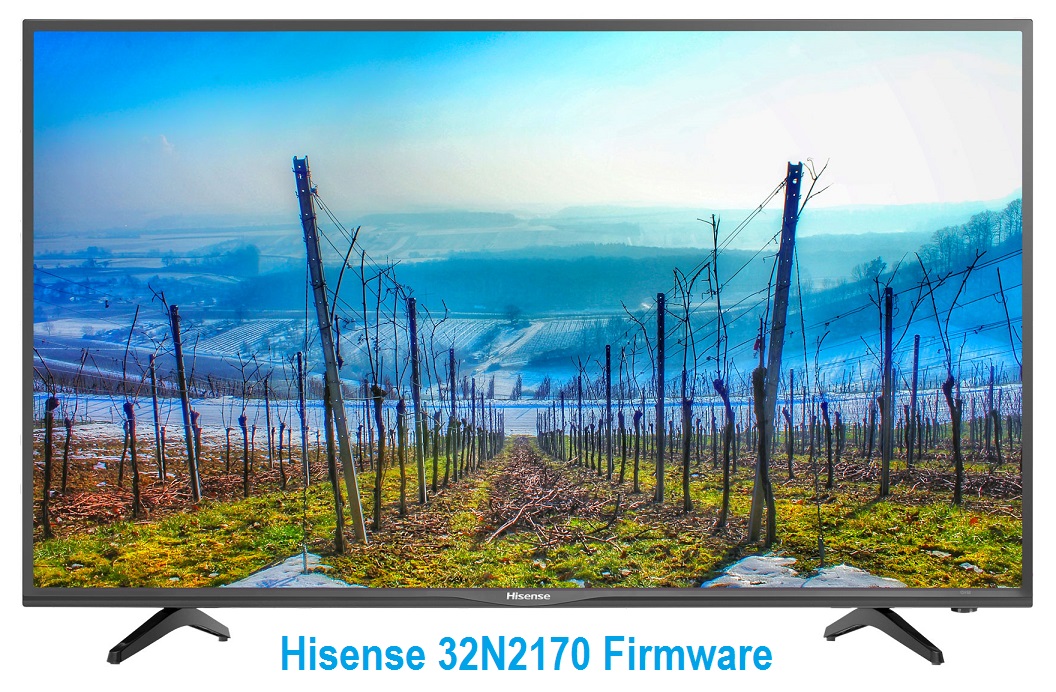

HISENSE 32N2170HW Smart LED TV
Hisense 32N2170HW is a semi-smart HD DVB LED TV Android Board. It has a supported HD resolution of 1366×768 and a smooth Motion Rate is 60 hertz with a VIDAA smart operating system. Multiple connectivity interfaces like HDMI ports for connecting a set-top box, Blu-Ray players, and gaming consoles, also have more than one USB port to connect hard drives and other USB devices and play multimedia as well. It has a Dolby Sound system that Supports 16 Watts sound output and HD Display viewing.
Hisense 32N2170HW can support the Smart TV Features with built-in apps and a special feature of the Netrange App Store. Hisense 32N2170HW firmware files are given below for free of cost download to support technicians. For more details visit Hisense global website.
General Features & Specifications:
Brand: Hisense
Board Model: 32N2170HW
Display Format: HD 720P
Screen Type: LED
Features Format: Smart
OS Version: VIDAA
Chipset: Mstar
Processor: Dual-Core
Graphic Processor: Dual-core
RAM Capacity: GB DDR3
Storage Memory: NAND Flash
NAND: TH58NVG2S3HTA00
Screen Resolution: 1366×768
No of HDMI Ports: 3
No of USB Ports: 2
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output: 16W (08W*2)
Tuner: ATV/DTV
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 100 W

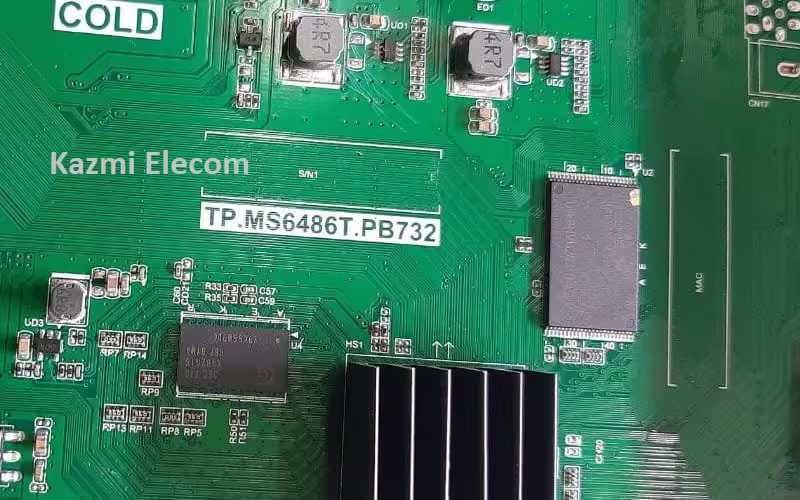

Main Board: TP.MS6486T.PB732
Firmware Type: USB Update and NAND Backup
Firmware Name: HX32N2170WTS.bin
Product: Hisense
Special Features: Netrange App Store
Caution:
All the pictures and specification details related to Hisense 32N2170HW in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different based on the visual observations. So, please do not try it at home. If the LED TV is slow then reset it to Factory Default only.
Pros:
There are many advantages to installing the given Hisense 32N2170HW USB software or eMMC backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given USB software or EMMC backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given Hisense 32N2170HW USB software or backup dump file. But it depends on the technician or user, as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
Hisense 32N2170HW Android Version Upgrade:
Please note that the installed version in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.
Hisense 32N2170HW Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download Hisense 32N2170HW Firmware File:
Download all parts of the following Hisense 32N2170HW firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
Hisense 32N2170HW Firmware for free download:
S.NO. | BRAND/MODEL | DOWNLOAD LINK |
---|---|---|
1 | HISENSE_32N2170HW_Firmware_USB.part1 | Download |
HISENSE_32N2170HW_Firmware_USB.part2 | Download | |
HISENSE_32N2170HW_Firmware_USB.part3 | Download | |
2 | HISENSE_32N2170HW_NAND_Backup.part1 | Download |
HISENSE_32N2170HW_NAND_Backup.part2 | Download | |
HISENSE_32N2170HW_NAND_Backup.part3 | Download | |
HISENSE_32N2170HW_NAND_Backup.part4 | Download | |
HISENSE_32N2170HW_NAND_Backup.part5 | Download |
STV59-f11H
is that same for hisense ha32n2177wt ?
not confirm
cannot download this file (SSL_connect error 1)
Noted. I replace the links
