KK.RU10.671 Software Free Download

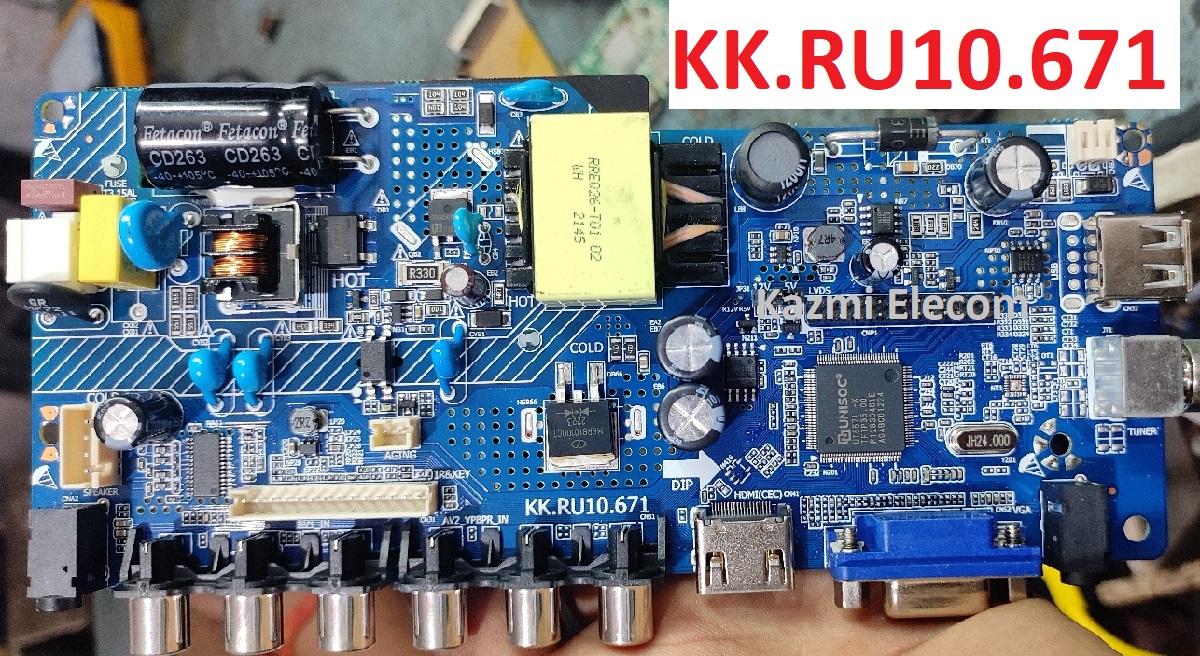

KK.RU10.671 Universal Board

KK.RU10.671 is a simple ATV Driver Motherboard designed for LCD/LED TVs. It is designed to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The main power module LED Backlight Inverter Circuit module and ATV Card are built into this motherboard. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. KK.RU10.671 firmware files are given below for the technician’s support.


General Specifications:

Brand/Mark: Universal Board

Model: KK.RU10.671

Main Chip: Unisoc UTS671-X

Product: LCD/LED TV

LED Backlight: mA

Flash IC: 4Mb

Sound Chip:

Tuner IC: NA

Screen supported: 24 inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 220V AC

Firmware Name: NA

Firmware Type: Backup Dump

Resolution Code:

  • 1920X1080 INPUT/SOURCE 4032
  • 1366X768 INPUT/SOURCE 4031

Factory Service Mode:

Source/Input 185

Note:  The following firmware is a backup dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

KK.RU10.671 firmware for free download:


For video tutorials, visit “Kazmi Elecom” my YouTube channel.
