LG 32LF560V-ZB LED TV
LG 32LF560V-ZB is a 32-inch 81cm Smart High Definition LED TV with a maximum supported resolution of 1366×768. It is a direct LED TV with great features. Its sound output is 16-watt (8W+8W) RMS MS10 Dolby Digital Plus. It has a Digital/Analog tuner B/G, D/K, I, M, PAL, SECAM, NTSC 3.58, NTSC 4.43 in AV only. Its refresh rate is 60Hz.
LG 32LF560V-ZB has multiple input-output interfaces for user connectivity, such as 2 HDMI connections, 1 USB port, SCART, CI+, Serial interface, and Other connections: digital audio output (SPDIF), audio L/R-in, and Headphones.
General Features & Specifications:
Brand: LG
Model: 32LF560V-ZB

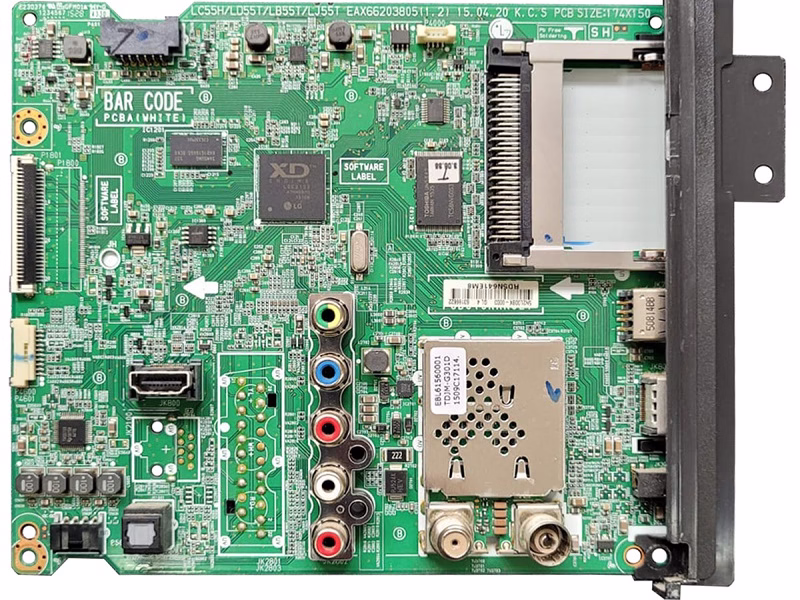

Main Board: LD55T EAX66203805 (1.2)
Chassis:
Panel: NC320DUN-VBBP3
Display Format: HD 720P WXGA
Screen Type: LED
Screen Resolution: 1366×768
Features Format: Smart
OS Version: NA
Processor: Dual-Core
Graphics Processor: Dual-core
RAM Capacity: 512MB DDR3
Storage Memory: TC58NVG0S3HTA00@TSOP48
HDMI Ports: 2
USB Ports: 1
Wi-Fi Type: NA
Built-In Wi-Fi: NA
Ethernet (RJ45): Yes
Speaker Output: 16W (8W+8W)
Tuner: Yes (DVB-T2, DVB-C, DVB-S2)
Power Requirement: 100- 240V
Power Consumption: 1.1 Amp
Firmware Type: NAND Backup
Note: The following firmware is a NAND backup file (NAND + SPI + EEPROM). Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
LG 32LF560V-ZB Firmware for free download:
