P150-2874WV6.2 UHD Smart Board

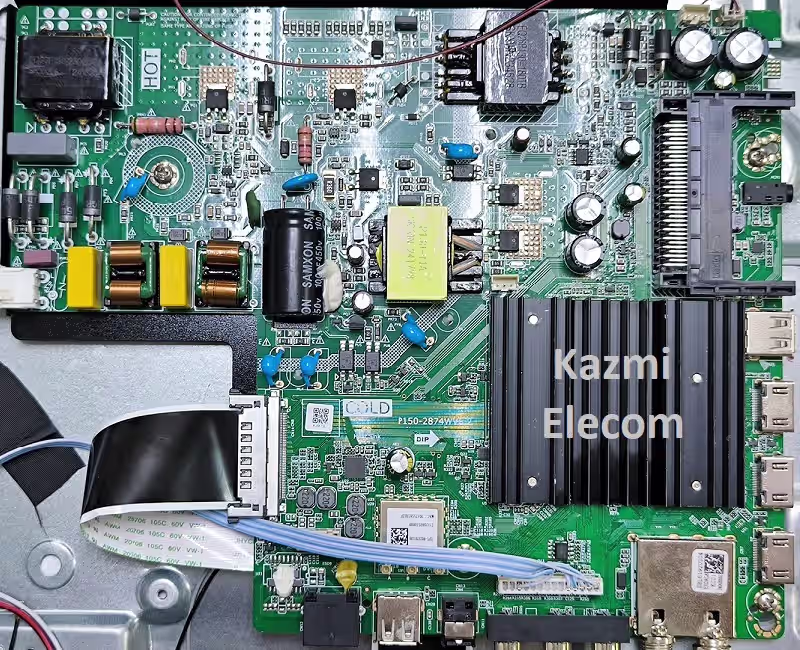

P150-2874WV6.2 is a UHD smart WebOS LED TV motherboard. This motherboard supports 4K 2160 Pixels Ultra HD 3840×2160 screen resolution. This board is a combo LED TV board. The main input power supply circuit module is required separately, while the Cable TV tuner and the LED backlight driver module are built into a single piece of printed circuit board (PCB). The ROM storage capacity of this motherboard is 8 GB, which is sufficient for the user to install and play new applications of their choice.
P150-2874WV6.2 LED TV smart Android mainboard has several input-output ports for user connectivity. It has triple HDMI input ports for connecting digital full-HD devices. It has an RJ45 Ethernet interface for wired internet connectivity, providing faster, smoother internet performance. It has a mini component input for analog device connectivity. It has a Digital audio optical out (SPDIF) and a cable TV tuner. It has a USB interface port for software upgrades and multimedia playback.
General Information:
Board Model: P150-2874WV6.2-C 74L
Main Chipset: RTD2874WDA
CPU: A55 4 Core, 1.1GHz
GPU: Mali-G31,700Mhz
Android Version: Android 11
Resolution: 3840×2160
Audio Power: 2x10W (20 watts 8 ohm)
Backlight Volt: 100-113V
Backlight Current: 850mA
Backlight Power: 100W
USB Ports: 2
HDMI Ports: 3
CI: Yes
Component: Yes (Mini)
RJ45: Yes
Tuner: ATV and DTV (R842, RT710) Optional
Wifi: Yes
Mira-Cast: Yes
Bluetooth: 5.0
Memory (RAM): 1.5GB DRAM

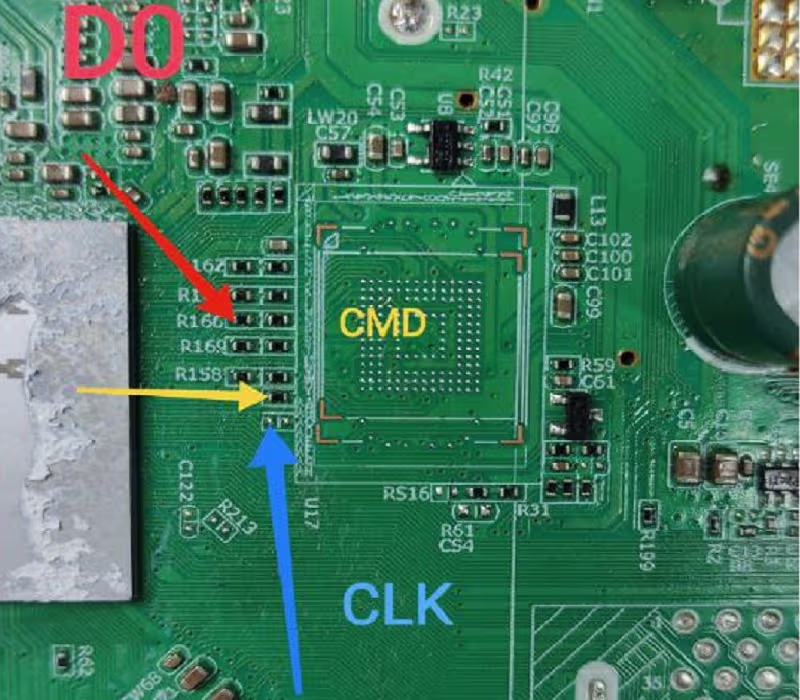

Storage (ROM): 8 GB EMMC Flash (KLM8G1GETF)
Power Rating: 110V~240V 50Hz
Power Consumption: 100Watt
Firmware Name: NA
Firmware Type: EMMC Backup Dump (UFPI)
Product User: KONKA
Note: The following firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
P150-2874WV6.2 Firmware files for free download:
