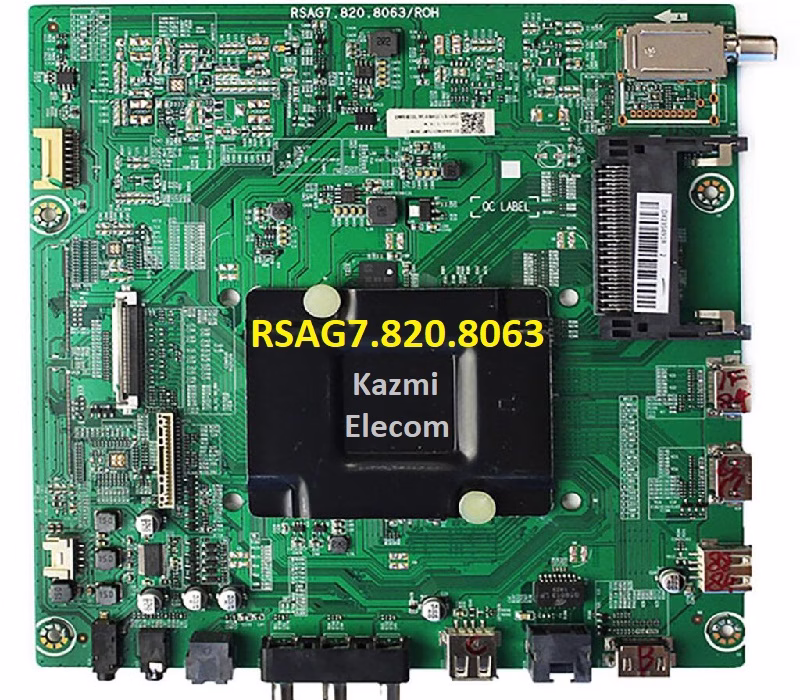

RSAG7.820.8063 Smart Android Board
RSAG7.820.8063 is an HD and FHD DVB LED TV Android Smart Board. It has a supported up to Full HD resolution of 1920×1080 and a Refresh Rate of 50/ 50/60 hertz without 3D technology. It has dual HDMI input ports to connect full HD devices such as set-top boxes, Blu-Ray players, and gaming consoles. It has multiple USB ports to connect external hard disk drives and other USB devices and play multimedia files. It has a Dolby Sound system that supports 20 Watts of sound output and HDR Display viewing. It has dual Tuners for Analog and Digital broadcasting signal reception.
RSAG7.820.8063 firmware files are given below for free of cost download to support technicians. This is a single Printed Circuit non-combo motherboard for which the main power input Supply circuit module, Cable TV tuners, and LED Backlight inverter circuit are required separately. So, there is no need for an extra module to complete the LED TV setup. Analog Signal reception is NTSC/PAL/SECAM, and for Digital signal reception, the protocols are DVB-T, DVB-T2, DVB-C, DVB-S, and DVB-S2.
General Features & Specifications:
Brand: China
Board Model: RSAG7.820.8063/ROH
Display Format: Full HD 1080P
Screen Type: LED
Features Format: Smart
OS Version: Android
Chipset: MT5659DEHT
Processor: Dual-Core
Graphics Processor: Dual-core
RAM Capacity: GB DDR3
Storage Memory: 4 GB ROM
Screen Resolution: 1920×1080
No of HDMI Ports: 3
No of USB Ports: 2
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output: 20W (10W*2)
Tuner: ATV/DTV (NTSC/PAL/SECAM)/(DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S2)
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 65 W
Firmware Type: EMMC Backup Dump File and USB Bootable Firmware
EMMC: KLM4G1FEPD
Firmware Name: upgrade_loader.pkg
Product: Dexp, Hisense
Note: The following firmware is a USB bootable and EMMC backup File. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
RSAG7.820.8063 Firmware for free download:
