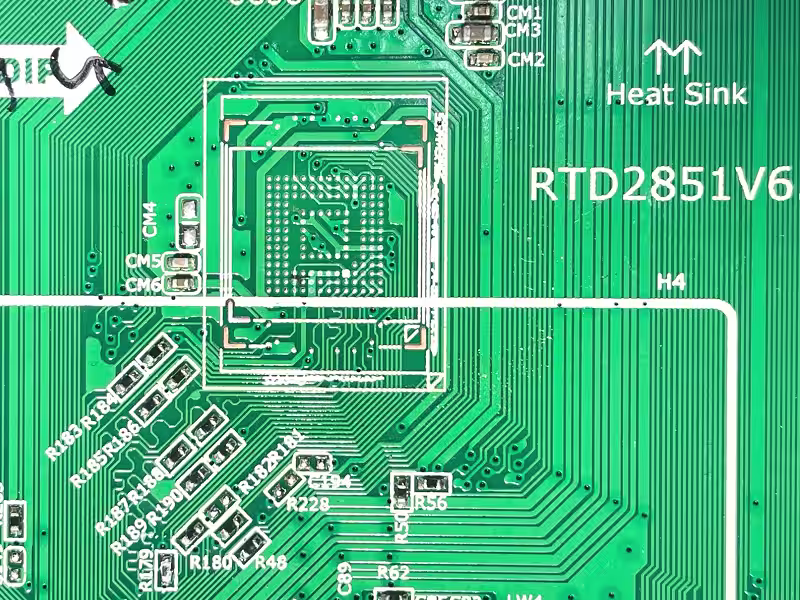

RTD2851V6.3 UHD Smart Board
RTD2851V6.3 is a high-speed network DTV universal driver board with a UHD resolution of 3840×2160. It is suitable for 55″ to 75″ screens. has a powerful wifi system. Smart FHD TV features with Android Platform and great features to entertain, Ultra HD Wide Screen with better working SMART feature. RTD2851-V6.3 Smart Board has multiple ports: A/V, USB interface Ports, and many HDMI ports, as well as VGA and Headphones.
RTD2851V6.3 has a LAN/RJ45 Ethernet Connector interface port, also for the wired/cable internet network. RTD2851_V6.3 is a Combo high-speed network triple-play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built into it. The Video and Sound quality of the RTD2851V6-3 Android board is very good, and the Response rate is very efficient. RTD2851V6.3 China Smart Network Board Firmware File is given below for the support of technicians.
Specifications & Features:
Brand/Mark: UHD Smart 4K LED TV Board
Main Board Model: RTD2851V6.3
Main Chipset: RTD2851
Interface: Single/Dual LVDS
Tuner: ATV & DTV
Operating System: Android
CPU: Cortex A53 Quad-Core
CPU Frequency: GHz
GPU: Multi-core
GPU Frequency: MHz
Ram: 1.5 GB
Rom: 8 Gb eMMC
Backlight Output Voltage Range: 65V-135V
Backlight output channel: 2 (3pin-PH2.0 )
Backlight current: 300mA*2
Backlight output power: 108W
Audio Output: 2x8w
Resolution: up to 3840×2160
Panel Power: 12V
Power Input: 100-240V AC 138W
Firmware File: RTK2851P.IMG
Firmware Type: USB Upgradeable
Product: Dexp
Service Menu: MENU – SOUND – 2008
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading, installing, or updating software, firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
RTD2851V6.3 Firmware for free download:
