SAMSUNG UE40EH5000W LED TV
SAMSUNG UE40EH5000W is a 40-inch Full HD Smart Edge LED TV. Its supported screen resolution is 1080 Pixels, 1920×1080. Samsung makes the main board (BN41-01795A), which is a non-combo board. This LED TV has a powerful sound system with a 20-watt (10×2 watts) stereo speaker system. It has a Worldwide NTSC/PAL/SECAM Color System, DVB-T (DVB-C, DVB-S2, DVB-T2) TV tuners.
The Samsung UE40EH5000W Smart LED TV has multiple interfaces for user connectivity, such as dual HDMI input ports for connecting digital devices and a component input interface for analog device connectivity. It has SPDIF for digital audio out. This LED TV also has a dual USB input port for multimedia playback and software upgrades.
General Specifications & Features:
Make: SAMSUNG
Model Code: UE40EH5000WXZF
Model: UE40EH5000W
Display Size: 40″
Storage Memory: 132 MB
HD Technology: Full HD
Panel:
No of HDMI Ports: 2
No of USB Ports: 1
No of AV Ports: 2
Digital signal format system: DVB-C, DVB-S2, DVB-T2
Speaker Output RMS: 20W (10W*2)
NAND Memory: K9F1G08UOD@TSOP48
Power Requirement: AC 100 – 240 V, 50/60 Hz
Power Consumption: 139 W, 0.5 W (Standby)
Software Type: NAND Dump, SPI Flash, EEPROM Backup
Software Name: NA

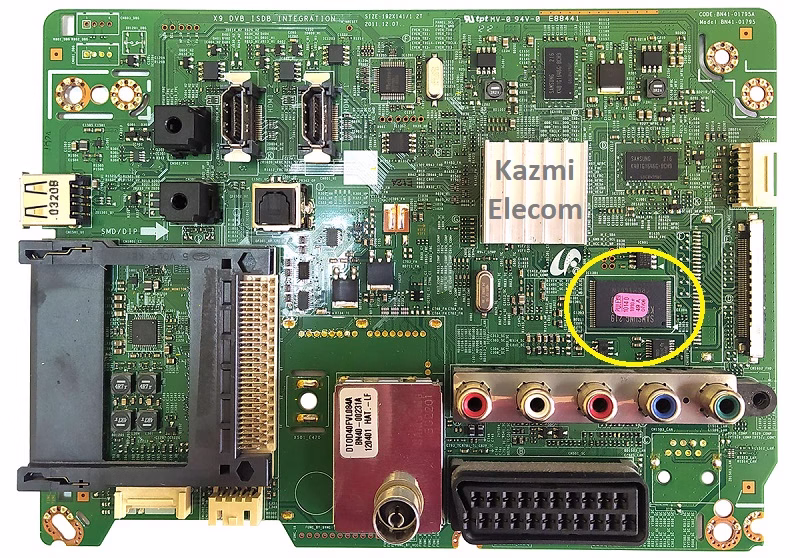

Main Board: BN41-01795A
Note: Samsung UE40EH5000W firmware is a backup dump file (NAND+SPI Flash+EEPROM). Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
SAMSUNG UE40EH5000W Firmware files for free download:
